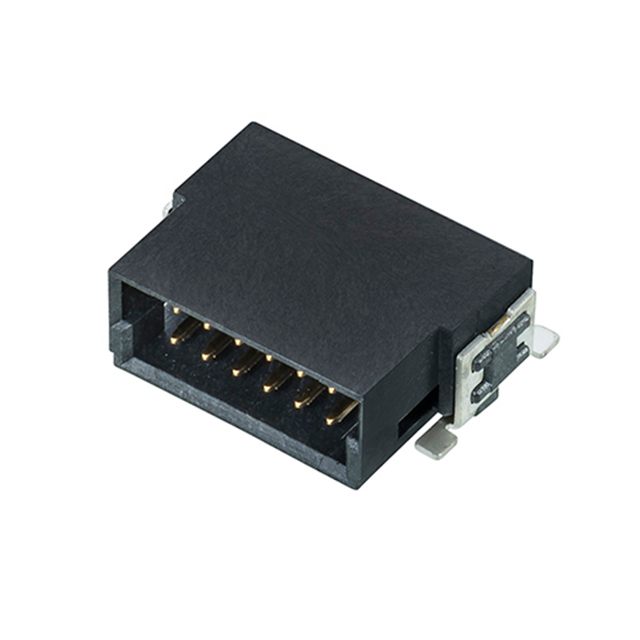

M55-7101242R
Or copy the link below:
- Mfr.Part #
- M55-7101242R
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 1.27MM
- Stock
- 1,834
- In Stock ：
- 1,834
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Fastening Type :
- Latch Lock
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Contact Shape :
- RECTANGULAR
- Mounting Type :
- Surface Mount, Right Angle
- Series :
- Archer Kontrol
- Applications :
- Automotive, General Purpose, Industrial
- Factory Lead Time :
- 15 Weeks
- Feature :
- Board Guide, Solder Retention
- Number of Positions Loaded :
- All
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Style :
- Board to Board
- Contact Length - Mating :
- 0.157 4.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.050 1.27mm
- Insulation Color :
- Black
- Published :
- 2018
- Connector Type :
- Header
- Operating Temperature :
- -55°C~125°C
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Current Rating (Amps) :
- 1.2A
- Packaging :
- Tape and Reel (TR)
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 1.00μin 0.025μm
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 12
- Insulation Height :
- 0.165 4.20mm
- Contact Finish - Post :
- Tin
- Datasheets
- M55-7101242R
M55-7101242R Documents
Archer Kontrol Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Liquid Crystal Polymer (LCP) 12-Position Board to Board 0.165 4.20mm Height
M55-7101242R Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Archer Kontrol Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial.A number of features make it more powerful because of its Board Guide, Solder Retention feature.There is no operating temperature for the device.
M55-7101242R Features
Archer Kontrol series
M55-7101242R Applications
There are a lot of Harwin Inc.
M55-7101242R Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
