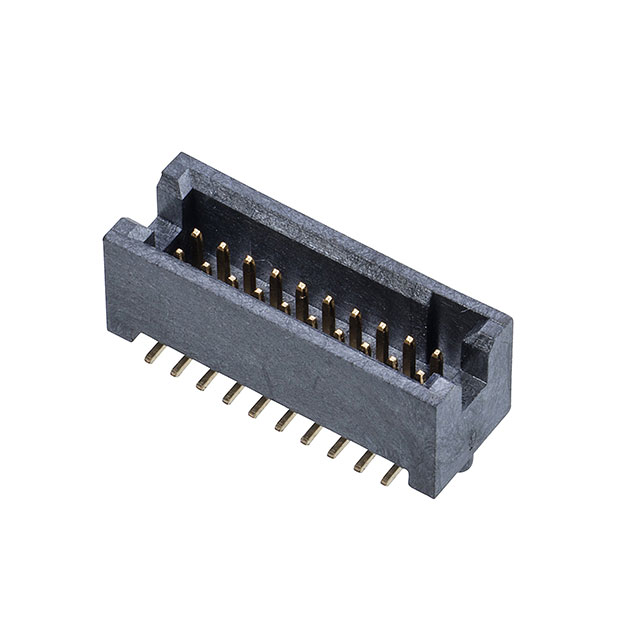

M50-4911045

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Current Rating (Amps) :

1A

Number Of PCB Rows :

2

Connector Type :

Header

Contact Finish - Mating :

Gold

Mounting Option 1 :

LOCKING

Insulation Height :

0.224 5.69mm

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Packaging :

Tube

Contact Type :

Male Pin

Published :

2016

Number of Positions Loaded :

All

Insulation Material :

Liquid Crystal Polymer (LCP)

Number of Rows :

2

Series :

Archer M50

Contact Finish Thickness - Mating :

Flash

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Surface Mount

Number of Conductors :

ONE

Stack Height (Mating) :

6.5mm

Reference Standard :

UL

Termination :

Solder

Contact Shape :

Square

Row Spacing - Mating :

0.050 (1.27mm)

HTS Code :

8536.69.40.40

Factory Lead Time :

13 Weeks

Board Mounting Option :

PEG

Operating Temperature :

-40°C~105°C

Fastening Type :

Push-Pull

Insulation Resistance :

1000000000Ohm

Feature :

Board Guide

Durability :

100 Cycles

Total Number of Contacts :

20

Style :

Board to Board

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Contact Pitch :

0.05 inch

Pitch - Mating :

0.050 1.27mm

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Insulation Color :

Black

Number of Positions :

20
