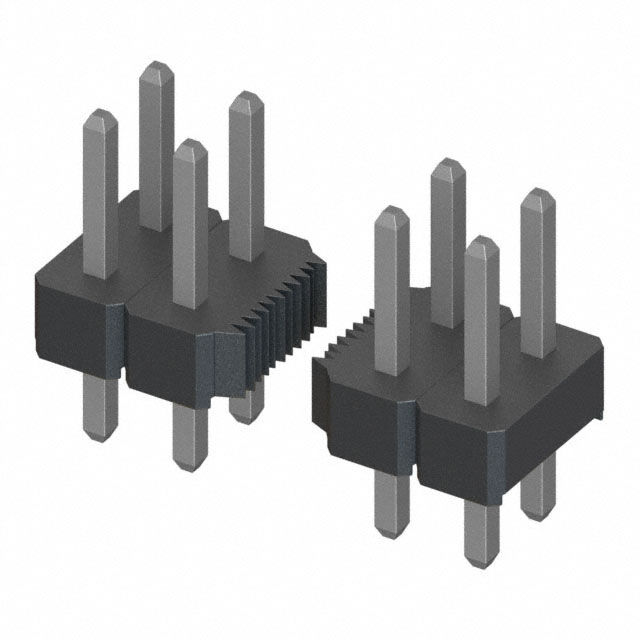

M22-2520746

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Length - Termination :

0.091 inch

Gender :

Male

Mounting Type :

Through Hole

Number of Conductors :

ONE

Contact Length - Mating :

0.138 3.50mm

Pitch - Mating :

0.079 2.00mm

Option :

GENERAL PURPOSE

Radiation Hardening :

No

Operating Temperature :

-40°C~105°C

Body Breadth :

0.157 inch

Housing Material :

Nylon

Overall Contact Length :

0.287 7.30mm

RoHS Status :

ROHS3 Compliant

Published :

2012

Body Depth :

0.059 inch

Row Spacing - Mating :

0.079 (2.00mm)

Contact Material :

Phosphor Bronze

Insulation Resistance :

100000000Ohm

Body Length or Diameter :

0.553 inch

Stack Height (Mating) :

3.8mm 5.9mm 8.6mm

Insulation Material :

Polyamide (PA6T), Nylon 6T

Voltage - Rated :

650V

Pbfree Code :

yes

Mixed Contacts :

No

Packaging :

Bulk

Number of Rows :

2

Insulation Height :

0.059 1.50mm

Termination :

Solder

Connector Type :

Header, Cuttable

Number of Positions :

14

Contact Finish - Mating :

Tin

Contact Shape :

Square

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

30mOhm

Durability :

50 Cycles

Additional Feature :

RoHS Compliant

Contact Type :

Male Pin

Number of Positions Loaded :

All

DIN Conformance :

No

Series :

M22

Factory Lead Time :

13 Weeks

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Filter Feature :

No

Fastening Type :

Push-Pull

Contact Length - Post :

0.091 2.30mm

Current Rating :

1A

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Style :

Board to Board

IEC Conformance :

No

Shrouding :

Unshrouded

UL Flammability Code :

94V-0

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Insulation Color :

Black

Mating Contact Pitch :

0.079 inch

Current Rating (Amps) :

1A per Contact

Reference Standard :

UL
