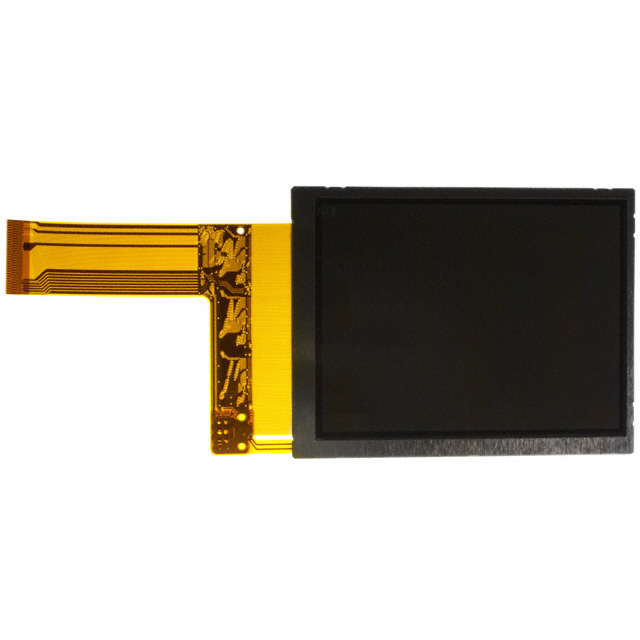

LQ038Q7DB03

Manufacturer :

Sharp Microelectronics

Product Category :

Resolution (width) :

240 pixel

Height :

3.4mm

Backlight Type :

LED

Backlight :

LED - White

Diagonal Size :

3.78 in

Min Operating Temperature :

0°C

Contrast Ratio :

75:1

RoHS Status :

Non-RoHS Compliant

Display Type :

TFT - Color

Dot Pitch :

0.24mm Wx0.24mm H

Brightness :

90 cd/m^2

Max Operating Temperature :

50°C

Lead Free :

Contains Lead

Graphics Color :

Red, Green, Blue (RGB)

Length :

69mm

Display Mode :

Transmissive

Packaging :

Box

Viewing Area :

57.60mm W x 76.80mm H

Mount :

Screw

Width :

88.6mm

Diagonal Screen Size :

3.78 96.01mm

Dot Pixels :

240 x 320

Interface :

Parallel, 18-Bit (RGB)

Resolution (height) :

320 pixel

Package / Case :

Module

Touchscreen :

No

Number of Pins :

61

Published :

2004

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
