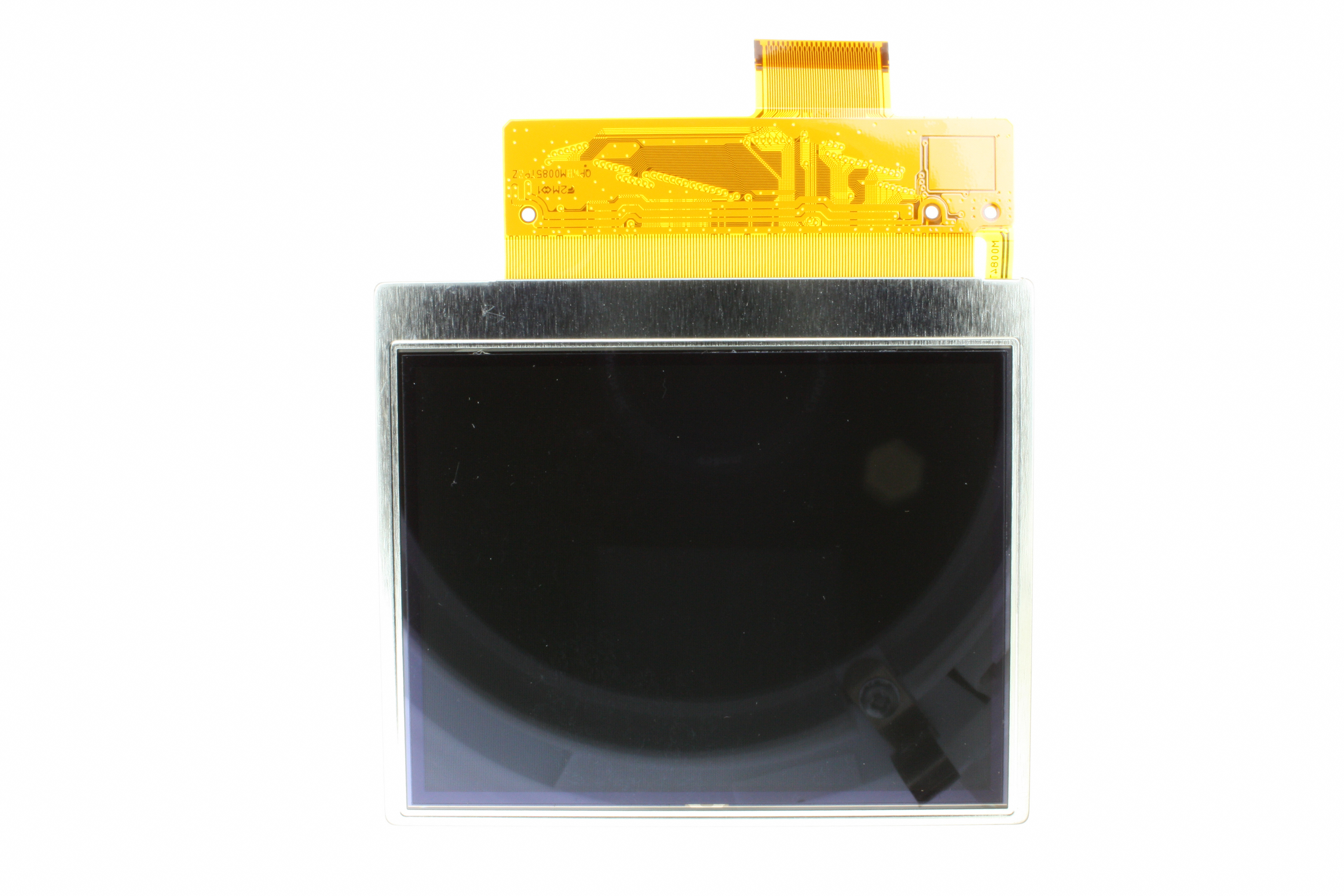

LQ036Q1DA01
Or copy the link below:
- Mfr.Part #
- LQ036Q1DA01
- Manufacturer
- Sharp Microelectronics
- Package / Case
- Datasheet
- Download
- Description
- LCD TFT 3.6" 320X240 QVGA
- Stock
- 5,674
- In Stock ：
- 5,674
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Backlight Type :
- LED
- Max Operating Temperature :
- 70°C
- Lead Free :
- Lead Free
- Min Operating Temperature :
- -20°C
- Overall Depth :
- 12mm
- Width :
- 69.7mm
- Horizontal Pixel Count :
- 640 pixel
- Published :
- 2004
- Height :
- 3.3mm
- Diagonal Screen Size :
- 3.6 91.44mm
- Dot Pixels :
- 320 x 240 (QVGA)
- Resolution (height) :
- 240 pixel
- Touchscreen :
- No
- Length :
- 82.8mm
- Backlight :
- LED - White
- Dot Pitch :
- 0.08mm Wx0.23mm H
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Resolution (width) :
- 320 pixel
- Graphics Color :
- Red, Green, Blue (RGB)
- Supply Voltage :
- 5V
- RoHS Status :
- RoHS Compliant
- Viewing Area :
- 72.48mm W x 54.36mm H
- Vertical Pixel Count :
- 480 pixel
- Interface :
- Parallel, 18-Bit (RGB)
- Number of Pins :
- 51
- Display Mode :
- Transmissive
- Diagonal Size :
- 3.6 in
- Display Type :
- TFT - Color
- Datasheets
- LQ036Q1DA01
LQ036Q1DA01 datasheet pdf and Display Modules - LCD, OLED, Graphic product details from Sharp Microelectronics stock available at
