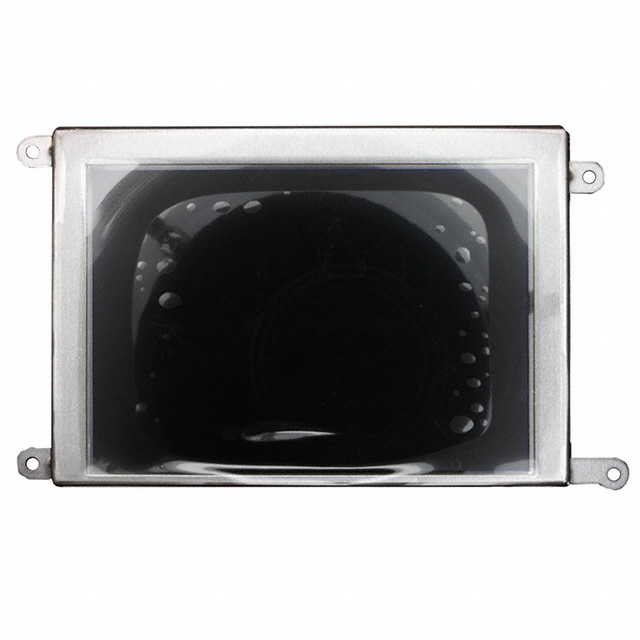

LQ038Q5DR01

Manufacturer :

Sharp Microelectronics

Product Category :

RoHS Status :

Non-RoHS Compliant

Packaging :

Box

Length :

118mm

Radiation Hardening :

No

Supply Voltage-Max (Vsup) :

3.7V

Supply Voltage :

3.3V

Number of Pins :

40

Diagonal Size :

3.8 in

Height :

13.5mm

Graphics Color :

Red, Green, Blue (RGB)

Backlight :

CCFL

Horizontal Pixel Count :

960 pixel

Diagonal Screen Size :

3.8 96.52mm

Package / Case :

Module

Resolution (width) :

320 pixel

Operating Temperature (Min) :

-30°C

Lead Free :

Lead Free

Width :

69.4mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

1

Dot Pixels :

320 x 240 (QVGA)

Display Type :

TFT - Color

Display Mode :

Transmissive

Interface :

Parallel, 18-Bit (RGB)

Operating Temperature (Max) :

60°C

Viewing Area :

78.72mm W x 53.64mm H

Supply Voltage-Min (Vsup) :

2.9V

Optoelectronic Device Type :

GRAPHIC DOT MATRIX LCD DISPLAY

Published :

2005

Dot Pitch :

0.80mm Wx0.22mm H

Resolution (height) :

240 pixel
