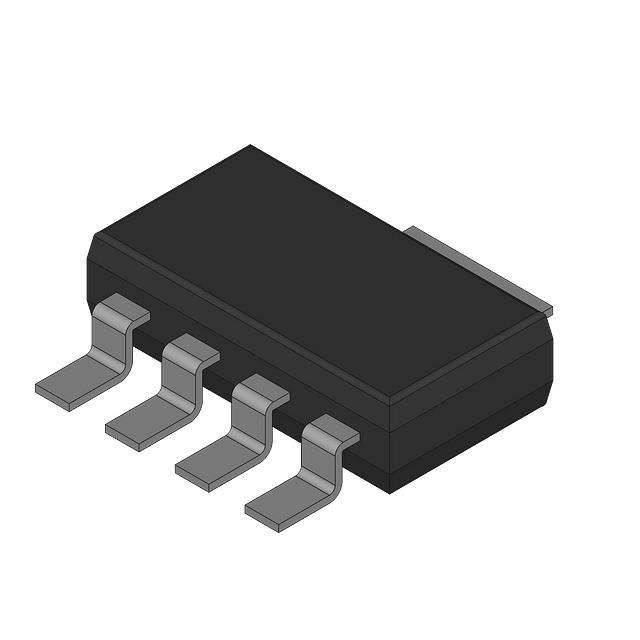

LP3965EMP-3.3

Manufacturer :

National Semiconductor

Product Category :

Voltage Regulators - Linear

Number of Functions :

1

Min Input Voltage :

2.5V

Output Voltage 1 :

3.3V

Thickness :

1.6mm

Base Part Number :

LP3965

Min Current Limit :

2A

Terminal Position :

Dual

Dropout Voltage :

380mV

Radiation Hardening :

No

Output Voltage :

3.3V

Output Voltage Accuracy :

1.5 %

ECCN Code :

EAR99

Output Configuration :

Positive

Accuracy :

1.5 %

Output Type :

FIXED

Package / Case :

TO-261-5, TO-261AB

Max Output Current :

1.5A

Pin Count :

5

Current - Quiescent (Iq) :

9mA

Lifecycle Status :

NRND (Last Updated: 3 days ago)

Terminal Finish :

Tin/Lead (Sn/Pb)

Dropout Voltage1-Nom :

0.38V

Current - Supply (Max) :

15mA

Quiescent Current :

4mA

Height :

1.8mm

RoHS Status :

Non-RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

40

Voltage Tolerance-Max :

3%

Voltage - Input (Max) :

7V

Operating Temperature :

-40°C~125°C

Number of Terminations :

5

Length :

6.5mm

Control Features :

Enable

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Voltage Dropout (Max) :

0.55V @ 1.5A

Lead Free :

Contains Lead

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Protection Features :

Over Current, Over Temperature, Short Circuit

Mounting Type :

Surface Mount

Terminal Form :

Gull wing

Peak Reflow Temperature (Cel) :

260

Number of Pins :

5

Packing Method :

TR

Width :

3.56mm

Number of Regulators :

1

Number of Outputs :

1

JESD-609 Code :

e0
