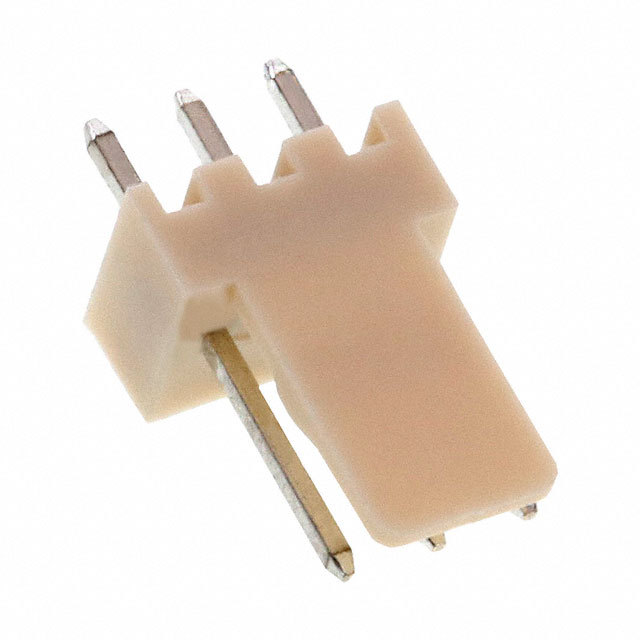

LHA-03-TS
Or copy the link below:
- Mfr.Part #
- LHA-03-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish - Mating :
- Tin
- Reference Standard :
- UL
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.134 3.40mm
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Contact Material :
- Brass
- Reliability :
- COMMERCIAL
- Contact Length - Mating :
- 0.291 7.40mm
- Contact Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 3A
- Number of Positions :
- 3
- Current Rating :
- 3A
- Insulation Color :
- Ivory
- Body Length or Diameter :
- 0.4 inch
- Fastening Type :
- Friction Lock
- Overall Contact Length :
- 0.559 14.20mm
- Voltage - Rated :
- 250VAC
- Body Breadth :
- 0.228 inch
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Housing Material :
- Nylon
- Style :
- Board to Cable/Wire
- Number Of PCB Rows :
- 1
- Contact Shape :
- Square
- Number of Rows :
- 1
- Polarization Key :
- POLARIZED HOUSING
- Series :
- LHA
- PCB Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 500VAC V
- Material Flammability Rating :
- UL94 V-2
- Packaging :
- Bulk
- Operating Temperature :
- -25°C~85°C
- Factory Lead Time :
- 9 Weeks
- Terminal Pitch :
- 2.54mm
- Mounting Option 1 :
- LOCKING
- Insulation Height :
- 0.134 3.40mm
- Mounting Type :
- Through Hole
- Number of Conductors :
- ONE
- Lead Free :
- Lead Free
- Datasheets
- LHA-03-TS
LHA Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.134 3.40mm Height
LHA-03-TS Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the LHA Series of products.There is no operating temperature for the device.
LHA-03-TS Features
LHA series
LHA-03-TS Applications
There are a lot of Adam Tech
LHA-03-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
