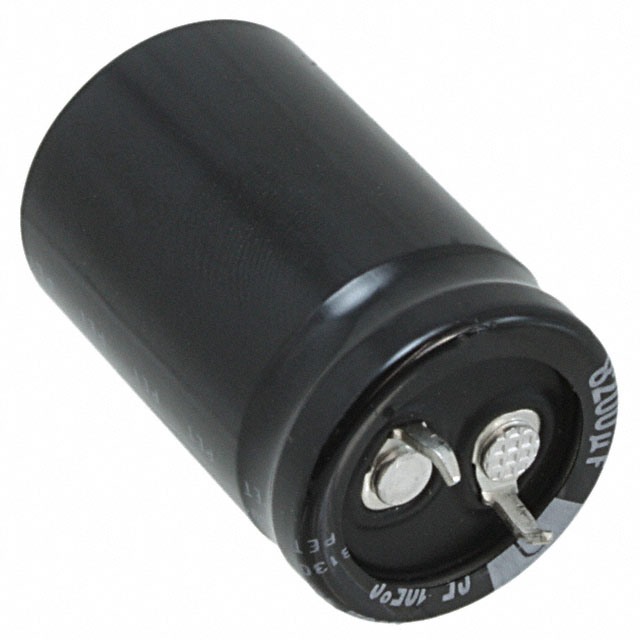

LGU1E822MELZ

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Lead Pitch :

10mm

Published :

2009

Ripple Current @ Low Frequency :

2.14A @ 120Hz

RoHS Status :

ROHS3 Compliant

Capacitance :

8200µF

Lifetime @ Temp :

3000 Hrs @ 105°C

Package / Case :

Radial, Can - Snap-In

Terminal Finish :

Matte Tin (Sn)

Feature :

GENERAL PURPOSE

Ripple Current @ High Frequency :

2.461A @ 50kHz

Applications :

GENERAL PURPOSE

ECCN Code :

EAR99

Series :

LGU

Size / Dimension :

0.866Dia 22.00mm

Tolerance :

±20%

Tan Delta :

0.4

Height Seated (Max) :

1.457 37.00mm

HTS Code :

8532.22.00

Operating Temperature :

-40°C~105°C

Lead Spacing :

0.394 10.00mm

Radiation Hardening :

No

Mounting Type :

Through Hole

Termination :

Snap in

Pbfree Code :

yes

Voltage - Rated DC :

25V

Mount :

Through Hole

Number of Terminations :

2

Height :

35mm

Diameter :

22mm

Leakage Current :

1.35mA

Factory Lead Time :

19 Weeks

Dielectric Material :

ALUMINUM (WET)

Life (Hours) :

3000 hours

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Polarization :

Polar

Ripple Current :

2.14A

JESD-609 Code :

e3

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
