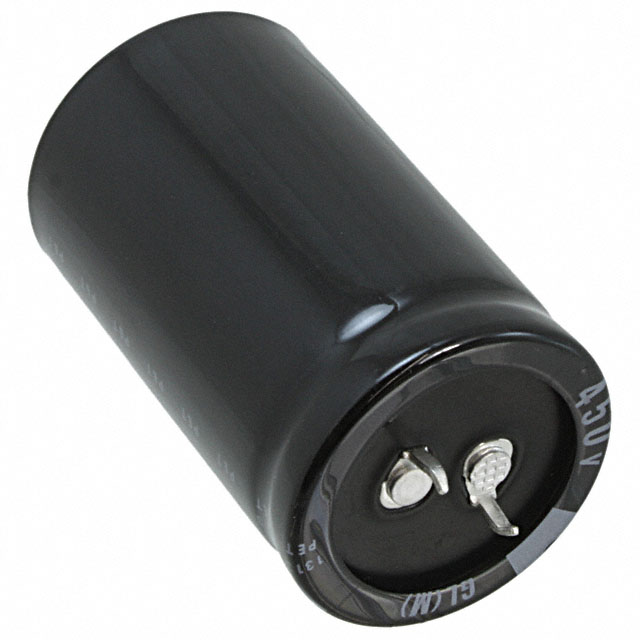

LGL2W561MELB50

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Package / Case :

Radial, Can - Snap-In

HTS Code :

8532.22.00

Operating Temperature :

-25°C~105°C

Factory Lead Time :

17 Weeks

Terminal Finish :

Matte Tin (Sn)

Ripple Current @ High Frequency :

2.3738A @ 50kHz

Leakage Current :

1.5mA

Termination :

Snap in

Lead Spacing :

0.394 10.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Tolerance :

±20%

Number of Terminations :

2

Dielectric Material :

ALUMINUM (WET)

Polarization :

Polar

Tan Delta :

0.2

Height :

50mm

Size / Dimension :

1.181Dia 30.00mm

Life (Hours) :

2000 hours

Voltage :

450V

Lead Diameter :

800 µm

Capacitance :

560μF

Ripple Current :

1.66A

ECCN Code :

EAR99

Pbfree Code :

yes

Packaging :

Bulk

Lifetime @ Temp :

2000 Hrs @ 105°C

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Series :

LGL

Voltage - Rated DC :

450V

Diameter :

30mm

JESD-609 Code :

e3

Mounting Type :

Through Hole

Ripple Current @ Low Frequency :

1.66A @ 120Hz

Lead Pitch :

10mm

Height Seated (Max) :

2.047 52.00mm

Mount :

Through Hole

Published :

2015

RoHS Status :

ROHS3 Compliant

Applications :

GENERAL PURPOSE
