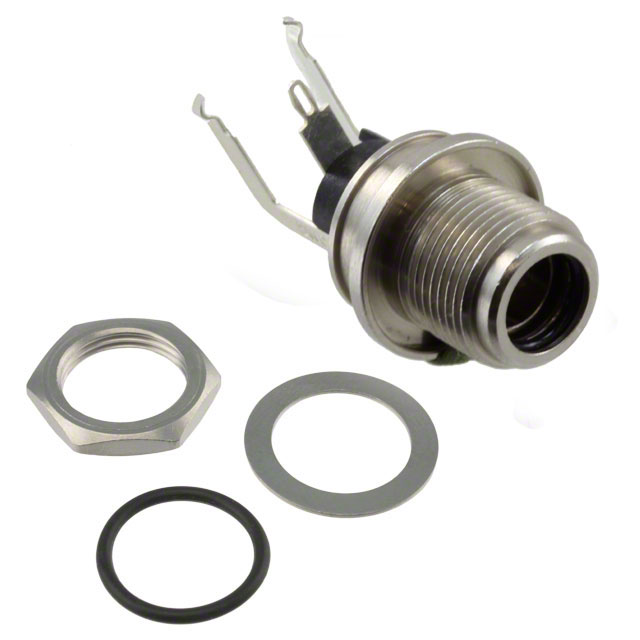

L712RAS

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Feature :

Mounting Hardware, Thread Lock

IEC Conformance :

No

Max Current Rating :

5A

Max Operating Temperature :

65°C

Contact Material :

COPPER ALLOY

Orientation :

RIGHT ANGLE

Number of Pins :

3

MIL Conformance :

No

Mounting Type :

Panel Mount, Through Hole, Right Angle

Contact Material - Plating :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Internal Switch(s) :

Single Switch, Normally Closed

Housing Color :

Black

Factory Lead Time :

8 Weeks

Length :

26.3mm

DIN Conformance :

No

Packaging :

Bulk

Voltage - Rated DC :

30V

Number of Ports :

1

REACH SVHC :

No SVHC

Mount :

Bulkhead, Panel, Through Hole

JESD-609 Code :

e4

Mounting Feature :

Bulkhead - Front Side Nut

Published :

1999

Option :

GENERAL PURPOSE

Actual Diameter :

0.098 (2.50mm ID)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Shielding :

Unshielded

Connector Type :

JACK

Body Material :

COPPER ALLOY

Gender :

Male

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Pin Diameter :

2.5 mm

Housing Material :

Thermoplastic

Max Voltage Rating (DC) :

30V

Termination :

Solder

Body Color :

Silver, Black

Contact Plating :

Nickel, Silver

Thread Size :

7/16-32

Pbfree Code :

yes

Current Rating :

5A

Includes :

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer

Height :

17.018mm

Depth :

26.3mm

Min Operating Temperature :

-20°C

Ingress Protection :

IP68
