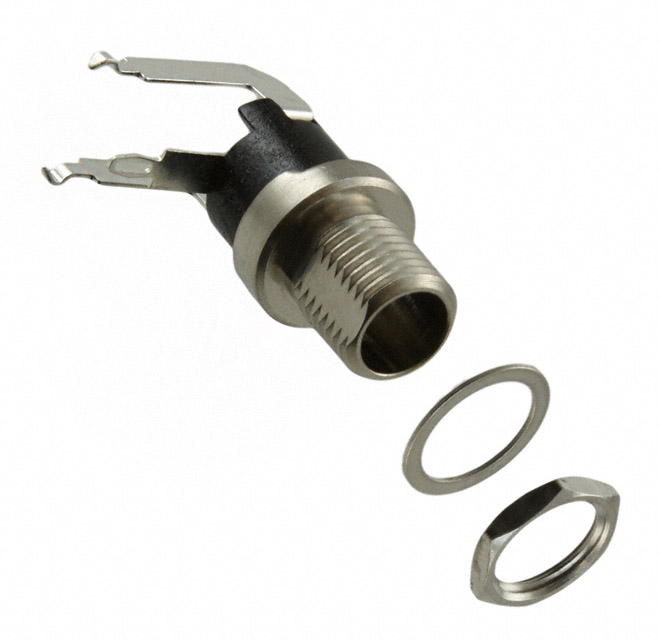

L712RA

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Actual Diameter :

0.098 (2.50mm ID), 0.228 (5.80mm OD)

Rated Current (Power) :

5A

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Pitch :

3.3mm

Housing Color :

Black

Termination :

Solder

REACH SVHC :

No SVHC

Max Voltage Rating (DC) :

12V

Number of Contacts :

2

Packaging :

Bulk

Body Color :

Silver, Black

Current Rating :

5A

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Option :

GENERAL PURPOSE

Orientation :

RIGHT ANGLE

Lead Free :

Lead Free

Contact Gender :

FEMALE

Gender :

Male

Shielding :

Unshielded

ECCN Code :

EAR99

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

JESD-609 Code :

e4

Insulation Resistance :

10GOhm

Published :

1998

Mounting Feature :

Bulkhead - Front Side Nut

Internal Switch(s) :

Single Switch, Normally Closed

Thread Size :

5/16-32

Body Material :

COPPER ALLOY

Number of Terminations :

3

Contact Plating :

Silver

Voltage - Rated DC :

12V

Mount :

Through Hole

Housing Material :

Thermoplastic

Max Current Rating :

5A

Number of Ports :

1

Connector Type :

JACK

Length :

8.1026mm

Mounting Type :

Panel Mount, Through Hole, Right Angle

Feature :

Mounting Hardware, Thread Lock

Factory Lead Time :

12 Weeks

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Number of Positions/Contacts :

2 Conductors, 3 Contacts
