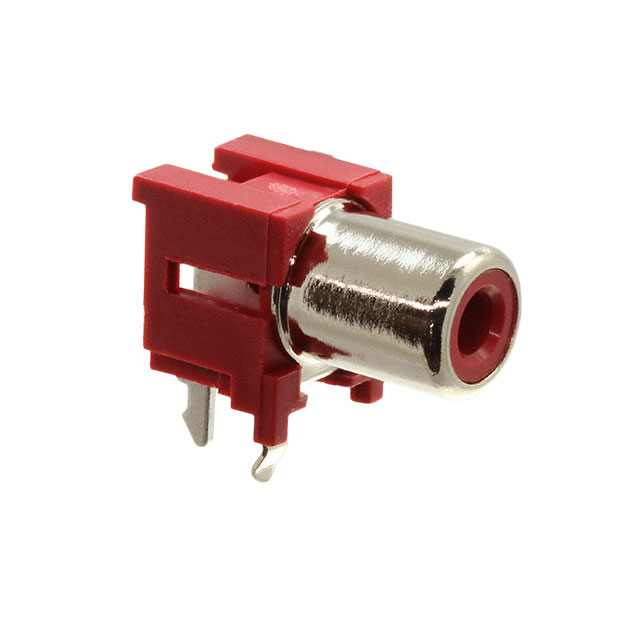

KLPX-0848A-2-R

Manufacturer :

Kycon

Product Category :

Audio Connectors

Number of Poles :

2

Series :

KLPX

Reliability :

COMMERCIAL

Termination :

Kinked Pin

Reference Standard :

UL

Body Material :

Brass

IEC Conformance :

No

Gender :

FEMALE

Feature :

Board Lock

ECCN Code :

EAR99

Radiation Hardening :

No

Insulation Color :

Red

Voltage - Rated :

500V

Contact Style :

RND PIN-SKT

Packaging :

Bulk

Contact Resistance :

30mOhm

Orientation :

RIGHT ANGLE

Body Depth :

0.768 inch

Signal Lines :

Mono

Dielectric Withstanding Voltage :

700VAC V

Option :

GENERAL PURPOSE

Contact Material - Plating :

Nickel, Tin

Body Length or Diameter :

0.394 inch

Contact Plating :

Tin

Number of Contacts :

2

Pitch :

4.5mm

Mounting Type :

Through Hole, Right Angle

Connector Type :

Phono (RCA) Jack

Operating Temperature :

-25°C~80°C

RoHS Status :

RoHS Compliant

Internal Switch(s) :

Does Not Contain Switch

DIN Conformance :

No

Published :

2006

Factory Lead Time :

20 Weeks

Industry Recognized Mating Diameter :

3.20mm ID, 9.00mm OD (RCA)

Mount :

Through Hole

Number of Conductors :

ONE

Number of Ports :

1

Body Color :

Silver, Red

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Actual Diameter :

0.130 (3.30mm ID), 0.327 (8.30mm OD)

Shielding :

Unshielded

MIL Conformance :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Polarization Key :

POLAR PIN POSITION

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

5000 Cycles
