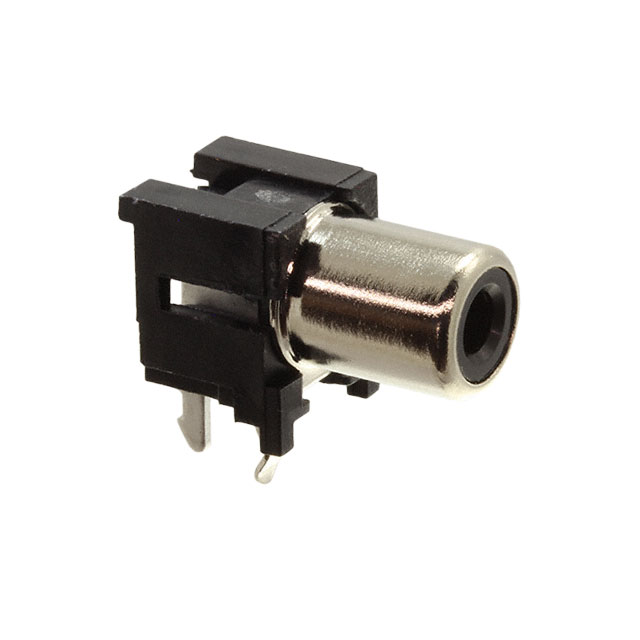

KLPX-0848A-2-B
- Mfr.Part #
- KLPX-0848A-2-B
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCA PHONO JACK R/A BLACK
- Stock
- 3,882
- In Stock :
- 3,882
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Audio Connectors
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Mount :
- Through Hole
- Orientation :
- RIGHT ANGLE
- Radiation Hardening :
- No
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Contact Resistance :
- 30mOhm
- Number of Conductors :
- ONE
- Internal Switch(s) :
- Does Not Contain Switch
- Contact Material - Plating :
- Nickel, Tin
- Reference Standard :
- UL
- Option :
- GENERAL PURPOSE
- Termination :
- Kinked Pin
- Number of Contacts :
- 2
- RoHS Status :
- RoHS Compliant
- Reliability :
- COMMERCIAL
- Body Color :
- Silver, Black
- Insulation Color :
- Black
- Dielectric Withstanding Voltage :
- 700VAC V
- Body Material :
- Brass
- DIN Conformance :
- No
- Feature :
- Board Lock
- Mounting Type :
- Through Hole, Right Angle
- Pitch :
- 4.5mm
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLAR PIN POSITION
- Connector Type :
- Phono (RCA) Jack
- Contact Style :
- RND PIN-SKT
- Operating Temperature :
- -25°C~80°C
- Voltage - Rated :
- 500V
- Number of Poles :
- 2
- Body Length or Diameter :
- 0.394 inch
- Series :
- KLPX
- Actual Diameter :
- 0.130 (3.30mm ID), 0.327 (8.30mm OD)
- Packaging :
- Bulk
- Shielding :
- Unshielded
- Number of Ports :
- 1
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Body Depth :
- 0.768 inch
- Signal Lines :
- Mono
- Gender :
- FEMALE
- IEC Conformance :
- No
- Durability :
- 5000 Cycles
- Factory Lead Time :
- 20 Weeks
- Contact Plating :
- Tin
- Datasheets
- KLPX-0848A-2-B
