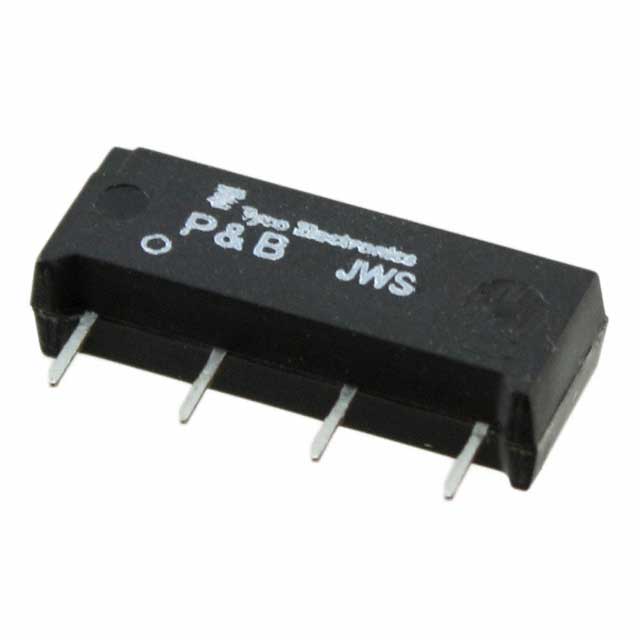

JWS-117-1

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Reed Relays

Packaging :

Tube

HTS Code :

8536.49.00.50

Contact Material :

Ruthenium (Ru)

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Contact Form :

SPST-NO (1 Form A)

Operate Time :

1.5 ms

Contact Rating (Current) :

500 mA

Body Breadth :

6.6 mm

Series :

JWS

Contact/Output Supply Type :

DC

Reference Standard :

CSA; UL

Termination Style :

PC Pin

Coil Current(DC)-Max :

0.007 A

Contact Voltage(DC)-Max :

100 V

Operating Temperature :

-35°C ~ 85°C

Coil Release Voltage(DC) :

1 V

Surface Mount :

No

Coil/Input Supply Type :

DC

Coil Resistance :

1850 Ω

Sealing :

EPOXY TERMINAL SEALED

Electrical Life :

1000000 Cycle(s)

Relay Action :

Momentary

Coil Voltage(DC)-Max :

12 V

Switching Voltage :

100VDC - Max

Physical Dimension :

20.32mm X 6.6mm X 7.8mm

Coil Power :

78 mW

Seal Rating :

-

Termination Type :

Solder

Body Length or Diameter :

20.32 mm

ECCN Code :

EAR99

Coil Operate Voltage(DC) :

9.6 V

Relay Type :

DRY REED RELAY

Features :

Diode

Coil Current :

6.5 mA

Reach Compliance Code :

Unknown

Coil Type :

Non Latching

Mounting Type :

Through Hole

Contact Current(DC)-Max :

0.5 A

Must Operate Voltage :

9.6 VDC

Product Status :

Obsolete

Release Time :

0.5 ms

Coil Voltage :

12VDC

Must Release Voltage :

1 VDC

Relay Function :

SPST

Body Height :

7.8 mm

Package :

Tube

Base Product Number :

JWS

Additional Feature :

WITH SUPPRESSION DIODE
