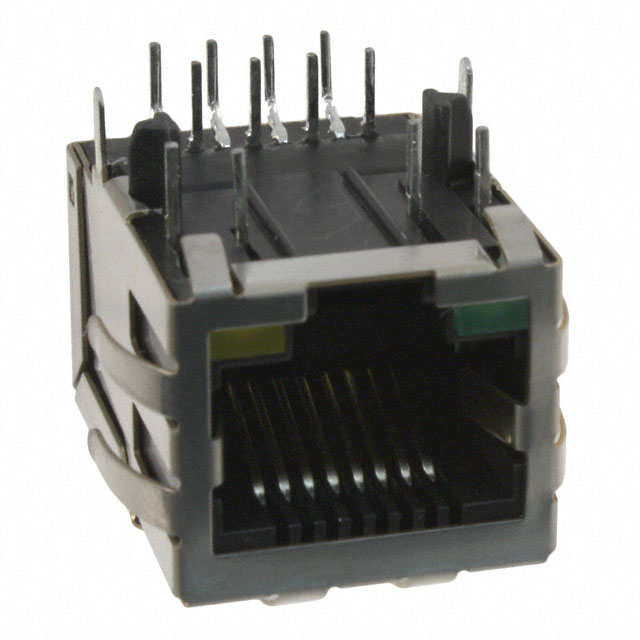

J0024D21BNL
Or copy the link below:
- Mfr.Part #
- J0024D21BNL
- Manufacturer
- Pulse Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 100 BASE-TX PCB
- Stock
- 8,112
- In Stock ：
- 8,112
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Modular Connector Jacks With Magnetics
- Housing Material :
- Thermoplastic
- Shield Material :
- Brass
- Number of Ports :
- 1
- Feature :
- Board Guide
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Manufacturer :
- Pulse Electronics Corporation
- Shielding :
- Shielded
- Package :
- Tray
- Height Above Board :
- 0.545 13.84mm
- Length :
- 20.86mm
- Product Status :
- Obsolete
- Mount :
- Through Hole
- Published :
- 2012
- Connector Type :
- RJ45
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Applications :
- 10/100 Base-TX, AutoMDIX
- Radiation Hardening :
- No
- Pitch :
- 2.54mm
- Packaging :
- Bulk
- Reach Compliance Code :
- Compliant
- LED Color :
- Green - Yellow
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Lead Free :
- Lead Free
- Number of Contacts :
- 8
- Tab Direction :
- Down
- Gender :
- FEMALE
- Series :
- PULSEJACK™ J0
- Operating Temperature :
- 0°C~70°C
- Depth :
- 21.59mm
- ECCN Code :
- EAR99
- Orientation :
- 90° Angle (Right)
- Number of Cores per Jack :
- 4
- Number of Rows :
- 1
- Features :
- Board Guide
- Termination :
- Solder
- Contact Finish :
- Gold
- Datasheets
- J0024D21BNL
