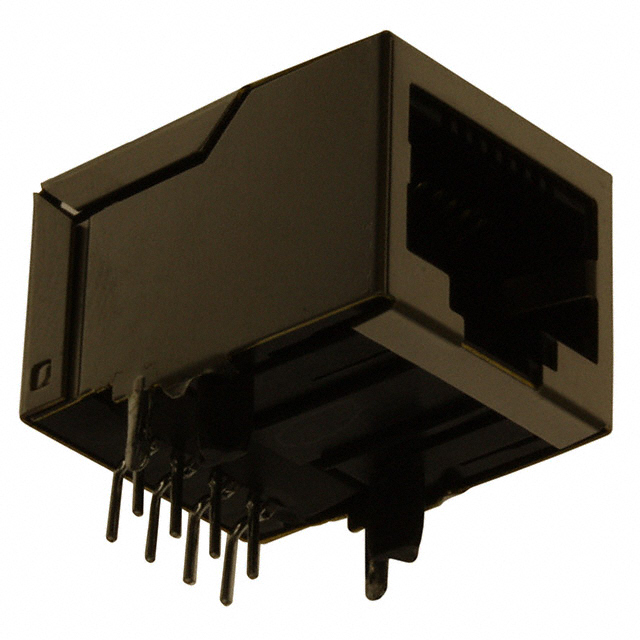

J0026D01NL

Share

Or copy the link below:

Mfr.Part #
J0026D01NL
Manufacturer
Pulse Electronics
Package / Case
Datasheet
Download
Description
CONN JACK 1PORT 100 BASE-TX PCB
Stock
322
In Stock :
322

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Pulse Electronics
Product Category :
Modular Connector Jacks With Magnetics
Product Length (mm) :
16.26(mm)
Application :
10/100 Base-TX
LED Color :
Does Not Contain LED
Shielding :
Shielded
Reach Compliance Code :
Compliant
RoHS :
Details
Depth :
21.59mm
Option :
GENERAL PURPOSE
Family :
J0
Shell Finish :
Nickel
Product Status :
Active
MIL Conformance :
No
Number of Cores per Jack :
5
Series :
PULSEJACK™ J0
Radiation Hardening :
No
Base/Housing Material :
Thermoplastic
Number of Ports :
1
Mounting Style :
Through Hole
Package :
Tray
Pitch :
2.54mm
Pitch (mm) :
2.54(mm)
Contact Finish Termination :
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Finish Thickness :
15.0μin 0.38μm
Type :
RJ-45 Integrated Magnetics
Mixed Contacts :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Empty Shell :
No
UL Flammability Code :
94V-0
Termination :
Solder
Filter Feature :
yes
Applications :
10/100 Base-TX
Termination Type :
Solder
Product :
Connectors
Factory Lead Time :
11 Weeks
Shell Material :
Brass
Mounting Angle :
RIGHT ANGLE
JESD-609 Code :
e3
Additional Feature :
PULSEJACK, SHIELDED
Configuration :
1x1
Termination Style :
Solder Pin
Product Depth (mm) :
21.59(mm)
Brand :
Pulse Electronics
RoHS Status :
RoHS Compliant
Product Height (mm) :
13.84(mm)
Gender :
FEMALE
Number of Positions Loaded :
8
Feature :
Board Guide
Mount :
Through Hole
Product Length :
16.26 mm
Operating Temperature :
0°C~70°C
Contact Finish :
Gold
Minimum Operating Temperature :
0 C
IEC Conformance :
No
Color :
Black
Product Category :
Modular Connectors / Ethernet Connectors
Length :
16.26mm
Contact Gender :
FEMALE
Operating Temp Range :
0C to 70C
Contact Material :
Phosphor Bronze
ECCN Code :
EAR99
Positions Loaded :
8
Height Above Board :
0.545 13.84mm
Termination Method :
Solder
Manufacturer :
Pulse
Number of Rows :
1
Housing Material :
Thermoplastic
Published :
2006
DIN Conformance :
No
Connector Type :
RJ45
Category Number :
Cat 5/Cat 6
Current Rating :
8 mA
Mounting Type :
Through Hole
Maximum Operating Temperature :
+ 70 C
Contact Plating :
Gold
Orientation :
90° Angle (Right)
Packaging :
Tray
Mounting :
Through Hole
Flammability Rating :
UL94 V-0
Number of Terminals :
8
Product Type :
Modular Connectors / Ethernet Connectors
Total Number of Contacts :
8
Body Orientation :
RIGHT ANGLE
Features :
Board Guide
USOC Codes :
RJ45
Shield Material :
Brass
Number of Contacts :
8 POS
Lead Free :
Lead Free
Subcategory :
Modular Connectors / Ethernet Connectors
Tab Direction :
Down
