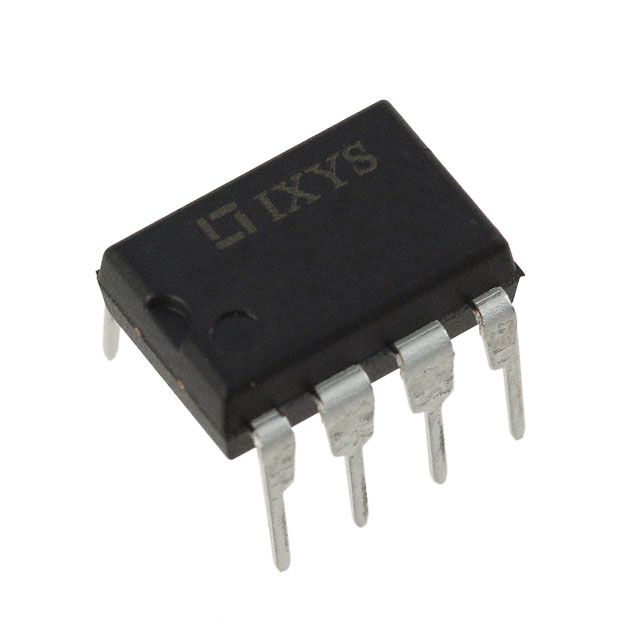

IXDN604PI

Manufacturer :

Littelfuse

Product Category :

Gate Drivers

Configuration :

Low Side

Power Supplies :

4.5/35 V

Length :

9.59 mm

RoHS :

Details

Fall Time (Typ) :

14 ns

Current - Peak Output (Source, Sink) :

4A 4A

Voltage - Supply :

4.5V~35V

Mount :

Through Hole

Surface Mount :

No

Minimum Operating Temperature :

- 40 C

Number of Terminals :

8

Min Operating Temperature :

-40°C

Number of Drivers :

2

Weight :

2.26799g

Manuf. code :

IXY

Min Supply Voltage :

4.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

THROUGH-HOLE

Subcategory :

PMIC - Power Management ICs

Series :

--

Input voltage (max.) :

35V

ECCN Code :

EAR99

HTS Code :

8542.39.00.01

Product Category :

Gate Drivers

JESD-30 Code :

R-PDIP-T8

Mounting Type :

Through Hole

Channels :

2

Package :

Tube

Supplier Device Package :

8-DIP

Operating Temperature :

-40°C~125°C TA

Package Shape :

RECTANGULAR

Output Current :

4A

Number of Functions :

2

Factory Lead Time :

8 Weeks

Product Status :

Active

Published :

2012

Max Operating Temperature :

125°C

Turn On Delay Time :

50 ns

Enclosure :

DIP 8

Product :

IGBT, MOSFET Gate Drivers

Operating Supply Current :

10μA

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Width :

7.62 mm

High Side Driver :

No

Terminal Position :

Dual

Base Product Number :

IXDN604

Manufacturer :

IXYS

Pin Count :

8

Driver Configuration :

Low Side

Tradename :

Clare

JESD-609 Code :

e3

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Style :

Through Hole

Driven Configuration :

Low-Side

Rise / Fall Time (Typ) :

9ns 8ns

Pbfree Code :

yes

Brand :

IXYS Integrated Circuits

Input Type :

Non-Inverting

MSL :

MSL 1 - Unlimited

Terminal Finish :

Matte Tin (Sn)

Maximum Operating Temperature :

+ 125 C

Product Type :

Gate Drivers

Technology :

Si

Terminal Pitch :

2.54 mm

Number of Pins :

8

Package / Case :

8-DIP (0.300, 7.62mm), 6 Leads

Number of Channels :

2

Packaging :

Tube

Seated Height-Max :

4.7 mm

Propagation Delay :

40 ns

Number of Outputs :

2

Channel Type :

Independent

Radiation Hardening :

No

Max Output Current :

4A

Qualification Status :

Not Qualified

Rise Time :

16ns

RoHS Status :

ROHS3 Compliant

Type :

IXDN604PI

Max. operating temperature :

+125°C

Gate Type :

IGBT, N-Channel, P-Channel MOSFET

Temperature Grade :

Automotive

Logic Voltage - VIL, VIH :

0.8V 3V

Max Supply Voltage :

35V

Reach Compliance Code :

Compliant
