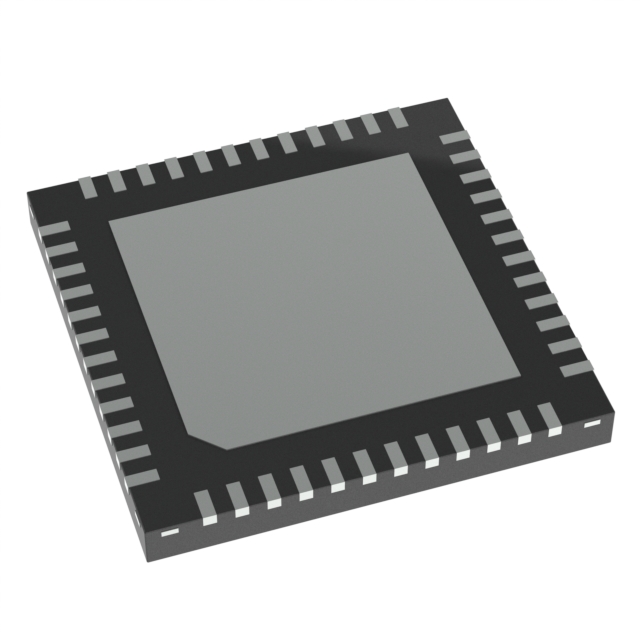

IS1870SF-102-TRAY

Manufacturer :

Microchip Technology

Product Category :

RF Transceiver Modules and Modems

Subcategory :

Wireless and RF Integrated Circuits

Program Memory Type :

FLASH, ROM

Series :

IS1870

Product Category :

RF System on a Chip - SoC

Antenna Type :

PCB Trace

Screening Level :

TS 16949

Terminal Position :

QUAD

RF Family/Standard :

Bluetooth

Current - Receiving :

13mA

Product Type :

RF System on a Chip - SoC

Mounting Type :

Surface Mount

Output Power :

0 dBm

Maximum Operating Temperature :

+ 70 C

Operating Frequency :

2.4 GHz

Terminal Form :

NO LEAD

Modulation :

-

Minimum Operating Temperature :

- 20 C

Lifecycle Status :

Production (Last Updated: 2 years ago)

Frequency :

2.402GHz ~ 2.48GHz

RoHS :

Non-Compliant

Reach Compliance Code :

Compliant

Seated Height-Max :

0.9 mm

Data Bus Width :

8 bit

Package :

Tray

Number of Functions :

1

Width :

6 mm

Number of Terminals :

48

Sensitivity :

- 90 dBm

Product Status :

Active

Type :

Bluetooth

JESD-30 Code :

S-XQCC-N48

Program Memory Size :

256 kB, 32 kB

Technology :

Si

Height :

0.9 mm

Current - Transmitting :

13mA

Manufacturer :

Microchip

Protocol :

Bluetooth v4.2

Brand :

Microchip Technology

Terminal Pitch :

0.4 mm

Number of I/Os :

31 I/O

Memory Size :

256kB Flash, 32kB ROM, 24kB SRAM

Interface Type :

I2C, SPI, UART

Temperature Grade :

COMMERCIAL

Mounting Style :

SMD/SMT

Utilized IC / Part :

8051

Number of ADC Channels :

16 Channel

Package Shape :

Square

Operating Temperature :

-40°C ~ 85°C

Packaging :

Tray

Telecom IC Type :

TELECOM CIRCUIT

Length :

6 mm

Voltage - Supply :

1.9V ~ 3.6V

Power - Output :

0dBm

Surface Mount :

yes

Data Rate :

921.6kbps

Package / Case :

QFN-48
