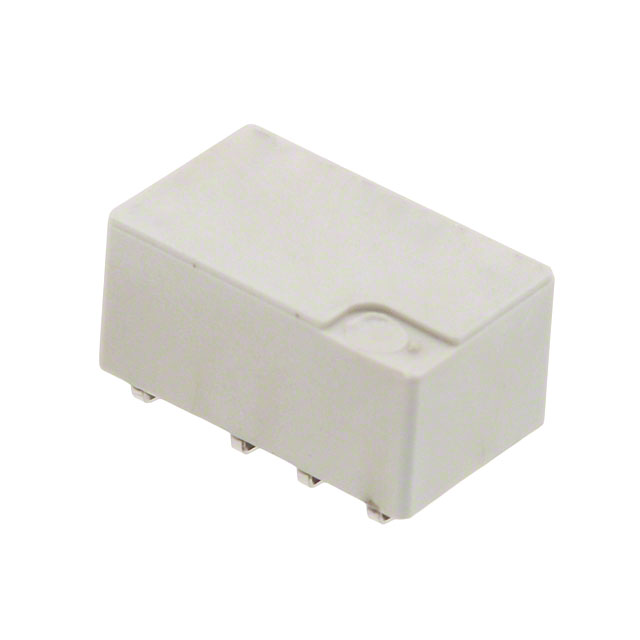

IM01JR

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Relay Construction :

Non-Latching

Contact Rating (Current) :

2A

Coil Type :

Non Latching

Contact Current(DC)-Max :

2 A

Brand Name :

Axicom

Packing Method :

Tape and Reel

Contact/Output Supply Type :

AC/DC

HTS Code :

8536.49.00.50

Operate Time :

1 ms

Turn Off Voltage (Min) :

0.3 VDC

Body Height :

5.65 mm

Relay Type :

Telecom

Moisture Sensitivity Level (MSL) :

--

Coil Insulation :

-

Relay Function :

DPDT

Coil Voltage(DC)-Max :

3 V

Coil Resistance :

64 Ohm

Switching Voltage :

250VAC, 220VDC - Max

Surface Mount :

No

Coil Voltage :

3VDC

Coil Current :

46.7mA

Reference Standard :

CECC; CSA; IEC; UL

Coil Current(DC)-Max :

0.047 A

Termination Style :

J Lead

Must Release Voltage :

0.3 VDC

Relay Action :

Momentary

Features :

Sealed - Hermetically

Operating Frequency-Max :

900 MHz

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Coil Power :

140 mW

Coil Release Voltage(DC) :

0.3 V

Contact Arrangement :

DPDT

Coil Operate Voltage(DC) :

2.1 V

Operating Frequency-Min :

100 MHz

Additional Feature :

LOW PROFILE

VSWR :

1.49

Contact Current(AC)-Max :

2 A

Factory Lead Time :

29 Weeks

Body Breadth :

6 mm

Physical Dimension :

10mm X 6mm X 5.65mm

Electrical Life :

100000 Cycle(s)

Seal Rating :

Sealed - Hermetically

Termination Type :

Solder

Switching Time :

18 ms

Must Operate Voltage :

2.25 VDC

ECCN Code :

EAR99

Series :

IM, AXICOM

Sealing :

IP67

Product Status :

Active

Coil/Input Supply Type :

DC

Contact Voltage(AC)-Max :

250 V

Contact Voltage(DC)-Max :

220 V

Packaging :

Tape and Reel

Turn On Voltage (Max) :

2.25 VDC

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Release Time :

3ms

Reach Compliance Code :

Unknown

Operating Temperature :

-40 to 85 °C

Mounting :

Surface Mount

Minimum Dropout Voltage :

0.3 VDC

Body Length or Diameter :

10 mm

Mounting Type :

Surface Mount

Manufacturer :

ABB

Product Length :

10 mm

Contact Material :

Palladium Ruthenium/Gold

Contact Form :

DPDT (2 Form C)
