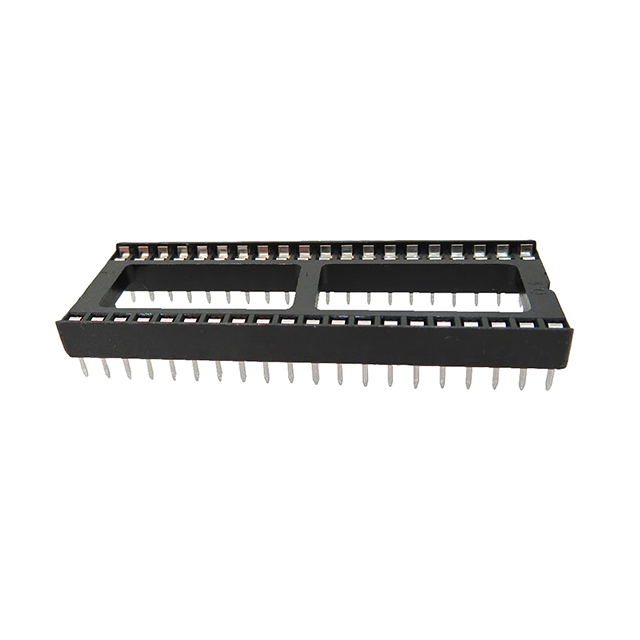

ICS-640-T

Manufacturer :

Adam Tech

Product Category :

IC Sockets

Dielectric Withstanding Voltage :

1000VAC V

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Contacts :

40

Operating Temperature :

-55°C~105°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Pitch :

1.778mm

JESD-609 Code :

e3

Current Rating (Amps) :

1A

Mount :

Through Hole

Contact Finish - Mating :

Tin

ECCN Code :

EAR99

Contact Material - Post :

Phosphor Bronze

Body Depth :

0.189 inch

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Pitch - Post :

0.100 2.54mm

Insulation Resistance :

5000000000Ohm

Lead Free :

Lead Free

Number of Positions or Pins (Grid) :

40 (2 x 20)

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

9 Weeks

Termination :

Solder

Termination Post Length :

0.124 3.15mm

Lead Pitch :

2.54mm

Contact Material - Mating :

Phosphor Bronze

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole

Contact Style :

BELLOWED TYPE

Mating Contact Pitch :

0.1 inch

Feature :

Open Frame

Body Breadth :

0.695 inch

Packaging :

Tube

Series :

ICS

Body Length or Diameter :

2 inch

Additional Feature :

STANDARD: UL 94V-0, LOW PROFILE

Contact Resistance :

20mOhm

PCB Contact Row Spacing :

0.6 mm

Type :

DIP, 0.6 (15.24mm) Row Spacing
