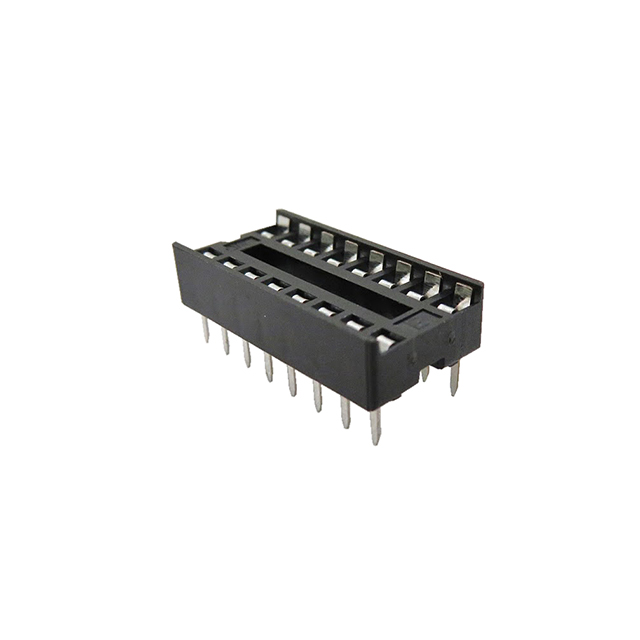

ICS-316-T

Share

Or copy the link below:

Mfr.Part #
ICS-316-T
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
IC SOCKET, DIP, 16P 2.54MM PITCH
Stock
697
In Stock :
697

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
IC Sockets
Length :
20.32mm
Termination :
Solder
Housing Material :
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions or Pins (Grid) :
16 (2 x 8)
Insulation Material :
Polybutylene
Contact Finish - Mating :
Tin
Feature :
Open Frame
PCB Contact Pattern :
RECTANGULAR
Contact Material :
Bronze
Contact Material - Post :
Phosphor Bronze
Orientation :
Straight
Lead Pitch :
2.54mm
JESD-609 Code :
e3
Pitch - Post :
0.100 2.54mm
Type :
DIP, 0.3 (7.62mm) Row Spacing
Lead Free :
Lead Free
Dielectric Withstanding Voltage :
1000VAC V
ECCN Code :
EAR99
Additional Feature :
STANDARD: UL 94V-0, LOW PROFILE
Mount :
Through Hole
Mounting Type :
Through Hole
Packaging :
Tube
Operating Temperature :
-55°C~105°C
Termination Post Length :
0.124 3.15mm
Depth :
9.96mm
HTS Code :
8536.69.40.40
Material Flammability Rating :
UL94 V-0
Number of Positions :
16
Body Breadth :
0.394 inch
Height :
5.2mm
Contact Resistance :
20mOhm
Factory Lead Time :
9 Weeks
Series :
ICS
Row Spacing :
7.62 mm
Current Rating (Amps) :
1A
Pitch - Mating :
0.100 2.54mm
Contact Material - Mating :
Phosphor Bronze
Contact Style :
BELLOWED TYPE
Mating Contact Pitch :
0.1 inch
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Rows :
2
Insulation Resistance :
1GOhm
Number of Contacts :
16
RoHS Status :
ROHS3 Compliant
Terminal Pitch :
2.54mm
Datasheets
ICS-316-T
Introducing IC Sockets Adam Tech ICS-316-T from Chip IC,where excellence meets affordability. This product stands out with its Type:DIP, 0.3 (7.62mm) Row Spacing, Mounting Type:Through Hole, Operating Temperature:-55°C~105°C, ICS-316-T pinout, ICS-316-T datasheet PDF, ICS-316-T amp .Beyond IC Sockets Adam Tech ICS-316-T ,we also offer 243-40-1-06, SA163000, 245-40-1-06, Our vast inventory has you covered. Contact us now for immediate solutions.

Adam Tech ICS-316-T


ICS-316-T datasheet pdf and Sockets for ICs, Transistors product details from Adam Tech stock available at Xinshop
