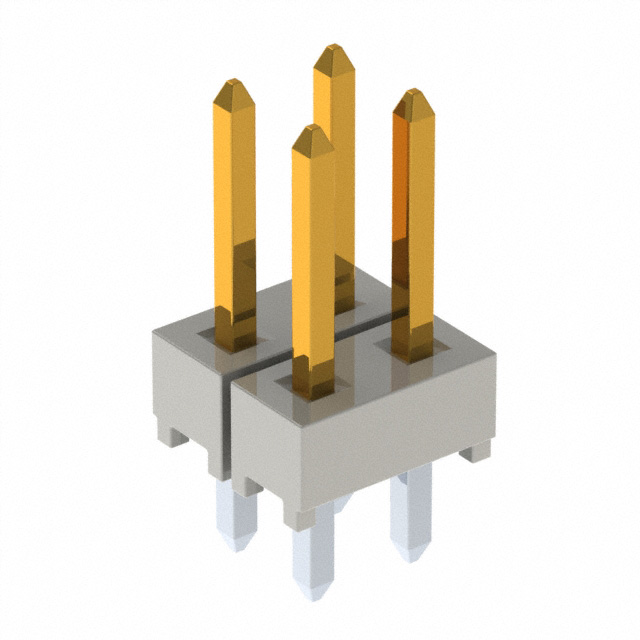

HTSW-102-07-FM-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

JESD-609 Code :

e3

Contact Length - Mating :

0.230 5.84mm

MIL Conformance :

No

Contact Finish - Post :

Tin

ECCN Code :

EAR99

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Row Spacing - Mating :

0.100 (2.54mm)

Body Depth :

0.1 inch

Packaging :

Bulk

Operating Temperature :

-55°C~125°C

Shrouding :

Unshrouded

Reliability :

COMMERCIAL

Mount :

Through Hole

Contact Finish - Mating :

Gold

DIN Conformance :

No

Option :

GENERAL PURPOSE

Contact Shape :

Square

Gender :

Male

Fastening Type :

Push-Pull

Number of Conductors :

ONE

Number of Rows :

2

Number of Positions Loaded :

All

Number of Positions :

4

Radiation Hardening :

No

Body Breadth :

0.198 inch

Contact Material :

Phosphor Bronze

Insulation Height :

0.100 2.54mm

Termination :

Solder

Contact Finish Thickness - Mating :

3.00μin 0.076μm

Mounting Type :

Through Hole

Filter Feature :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Insulation Color :

Natural

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

Not Applicable

IEC Conformance :

No

Series :

HTSW

Style :

Board to Board or Cable

Current Rating (Amps) :

Varies by WireGAuge

Factory Lead Time :

3 Weeks

Mating Contact Pitch :

0.1 inch

Contact Length - Post :

0.100 2.54mm

Overall Contact Length :

0.430 10.92mm

Published :

2016
