HR12-10R-8SDL(71)
Or copy the link below:
- Mfr.Part #
- HR12-10R-8SDL(71)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 8POS TIN SOLDER
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Published :
- 2009
- Orientation :
- Keyed
- Pbfree Code :
- yes
- Packaging :
- Tray
- Mounting Feature :
- Flange
- Max Current Rating :
- 1A
- Shielding :
- Shielded
- ECCN Code :
- EAR99
- Feature :
- Ground
- Mounting Type :
- Through Hole, Right Angle
- Total Number of Contacts :
- 8
- Current Rating :
- 2A
- Voltage - Rated :
- 100VAC 140VDC
- EMI Shielded :
- No
- Fastening Type :
- Snap-In
- Length :
- 13mm
- Mount :
- Flanges, Panel, Through Hole
- DIN Conformance :
- yes
- Depth :
- 13.8mm
- Color :
- Black
- Contact Finish - Mating :
- Tin
- Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Connector Type :
- Receptacle, Female Sockets
- Factory Lead Time :
- 10 Weeks
- Contact Material :
- Phosphor Bronze
- Termination :
- Solder
- JESD-609 Code :
- e3
- Lead Free :
- Lead Free
- MIL Conformance :
- No
- Shell Size - Insert :
- 10
- Radiation Hardening :
- No
- Series :
- HR12
- Operating Temperature :
- -15°C~60°C
- Number of Positions :
- 8
- Option :
- GENERAL PURPOSE
- Datasheets

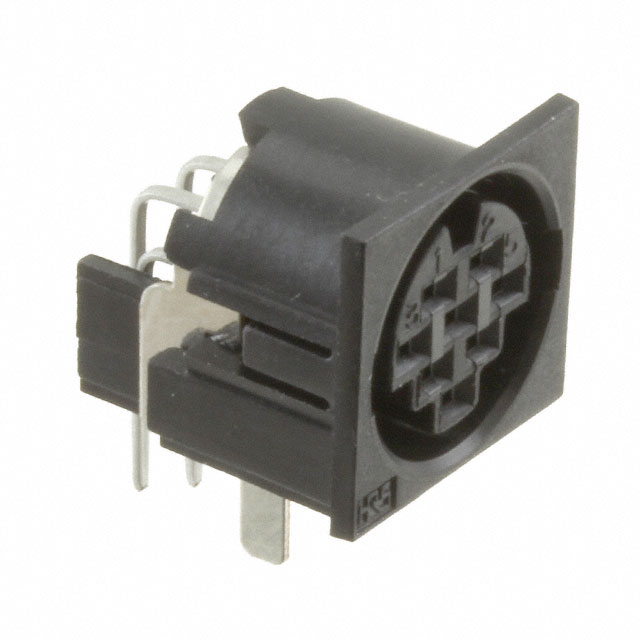

- HR12-10R-8SDL(71)
.jpg)
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 8 Positions Solder Tin Tray Keyed Snap-In
HR12-10R-8SDL(71) Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the HR12 Series.Several benefits come from the Ground feature.There is a mounting hole at Flanges, Panel, Through Hole.Devices operate at -15°C~60°C operating temperatures.
HR12-10R-8SDL(71) Features
HR12 series
HR12-10R-8SDL(71) Applications
There are a lot of Hirose Electric Co Ltd
HR12-10R-8SDL(71) Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
