HR12-10R-5SDL(71)
Or copy the link below:
- Mfr.Part #
- HR12-10R-5SDL(71)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 5POS TIN SOLDER
- Stock
- 15,755
- In Stock ：
- 15,755
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Circular Connector Assemblies
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 10 Weeks
- Color :
- Black
- JESD-609 Code :
- e3
- Published :
- 2009
- Shell Size - Insert :
- 10
- Mount :
- Flanges, Panel, Through Hole
- Mounting Type :
- Through Hole, Right Angle
- Depth :
- 13mm
- Packaging :
- Tray
- DIN Conformance :
- yes
- Connector Type :
- Receptacle, Female Sockets
- Mounting Feature :
- Flange
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- HR12
- Operating Temperature :
- -15°C~60°C
- IEC Conformance :
- No
- Length :
- 13mm
- Voltage - Rated :
- 100VAC 140VDC
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 5
- Fastening Type :
- Snap-In
- Contact Material :
- Phosphor Bronze
- EMI Shielded :
- No
- ECCN Code :
- EAR99
- Orientation :
- Keyed
- Current Rating :
- 2A
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Radiation Hardening :
- No
- Shielding :
- Shielded
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Lead Free :
- Lead Free
- Max Current Rating :
- 1A
- MIL Conformance :
- No
- Total Number of Contacts :
- 5
- Feature :
- Ground
- Datasheets

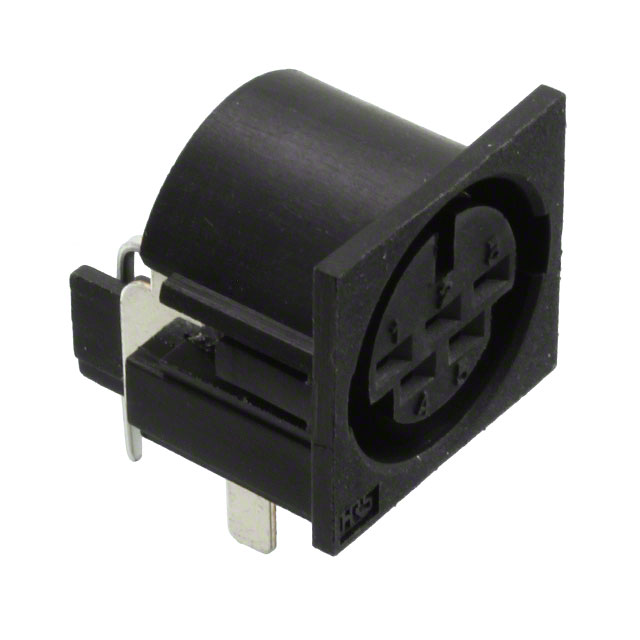

- HR12-10R-5SDL(71)
.jpg)
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 5 Positions Solder Tin Tray Keyed Snap-In
HR12-10R-5SDL(71) Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the HR12 Series, it belongs to the range of products of that series.A number of features make the Ground feature more powerful.Flanges, Panel, Through Hole represents the mounting point for the part.-15°C~60°C Operating Temperature is the default operating temperature for the device.
HR12-10R-5SDL(71) Features
HR12 series
HR12-10R-5SDL(71) Applications
There are a lot of Hirose Electric Co Ltd
HR12-10R-5SDL(71) Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
