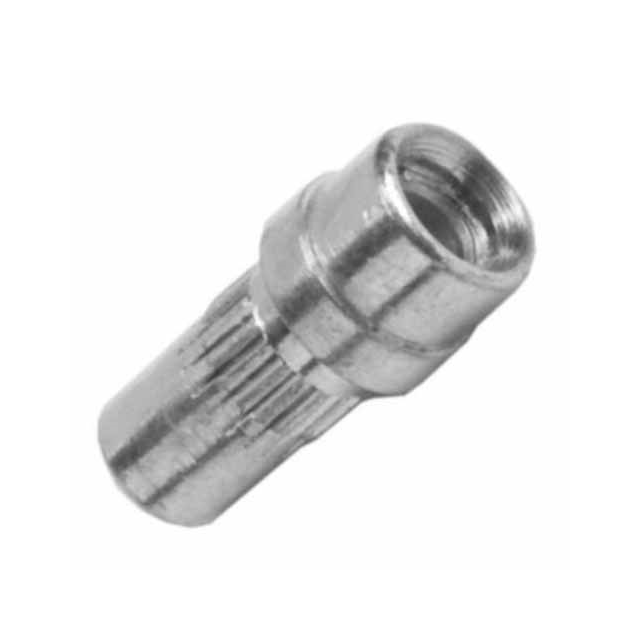

H3165-46
Or copy the link below:
- Mfr.Part #
- H3165-46
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- PCB SOCKET
- Stock
- 23,596
- In Stock ：
- 23,596
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Terminal and Terminal Block Type :
- PCB TERMINAL
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Termination :
- Press-Fit, Knurled
- Accepts Pin Diameter :
- 0.035 ~ 0.041 (0.89mm ~ 1.05mm)
- Length - Overall :
- 0.222 5.65mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Mounting Hole Diameter :
- 0.075 ~ 0.077 (1.91mm ~ 1.96mm)
- Mount :
- Socket
- Operating Temperature :
- -55°C~125°C
- Pbfree Code :
- yes
- Tail Type :
- No Tail
- Contact Finish :
- Tin
- Connector Type :
- Connector, Socket
- Radiation Hardening :
- No
- Contact Finish Thickness :
- 157.5μin 4.00μm
- Published :
- 2015
- HTS Code :
- 8536.90.40.00
- Socket Depth :
- 0.187 4.75mm
- Contact Material :
- BERYLLIUM COPPER
- Gender :
- FEMALE
- Insertion Force :
- 3.00N ~ 9.00N
- Flange Diameter :
- 0.105 (2.67mm)
- Datasheets
- H3165-46
H3165-46 Documents
H3165-46 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from Harwin Inc. stock available at Xinshop
