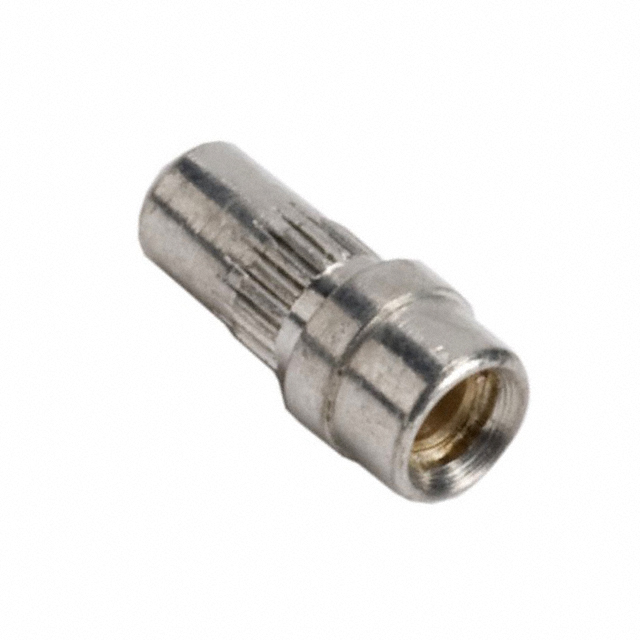

H3165-01
Or copy the link below:
- Mfr.Part #
- H3165-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .035-.041 KNURL
- Stock
- 33,914
- In Stock ：
- 33,914
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Pbfree Code :
- yes
- Mounting Hole Diameter :
- 0.075 ~ 0.077 (1.91mm ~ 1.96mm)
- Termination :
- Press-Fit, Knurled
- Tail Type :
- No Tail
- ECCN Code :
- EAR99
- Outside Diameter :
- 2.67 mm
- Length :
- 5.6388mm
- Contact Finish :
- Gold
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -55°C~125°C
- Flange Diameter :
- 0.105 (2.67mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness :
- 5.90μin 0.150μm
- Contact Material :
- BERYLLIUM COPPER
- Orientation :
- Straight
- Radiation Hardening :
- No
- Plating :
- Tin
- Hole Diameter :
- 1.96 mm
- Length - Overall :
- 0.222 5.65mm
- Connector Type :
- Connector, PCB, Socket
- Socket Depth :
- 0.187 4.75mm
- HTS Code :
- 8536.90.40.00
- Depth :
- 2.67mm
- Contact Resistance :
- 25mOhm
- Current Rating :
- 10A
- Published :
- 2011
- Terminal and Terminal Block Type :
- PCB TERMINAL
- REACH SVHC :
- No SVHC
- Accepts Pin Diameter :
- 0.035 ~ 0.041 (0.89mm ~ 1.05mm)
- Number of Contacts :
- 1
- Material :
- Brass
- Insertion Force :
- 3.00N ~ 9.00N
- Datasheets
- H3165-01
