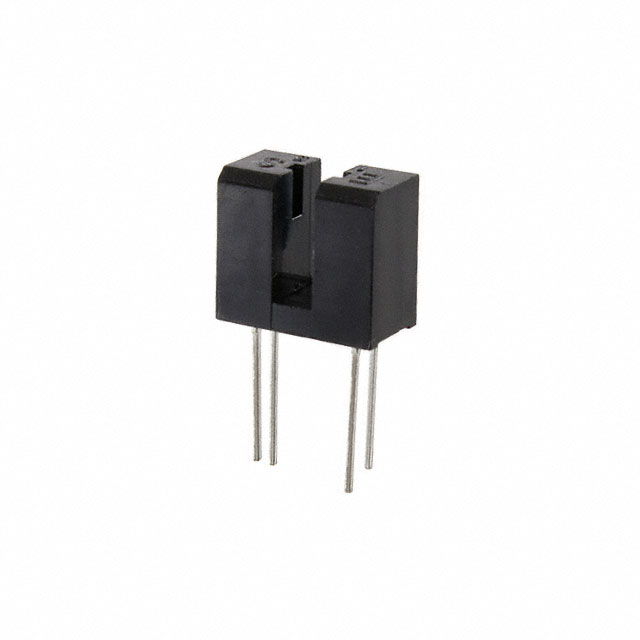

H22A3
Or copy the link below:
- Mfr.Part #
- H22A3
- Manufacturer
- Isocom Components
- Package / Case
- Slotted, PC Pins
- Datasheet
- Download
- Description
- SENSOR OPT SLOT PHOTOTRAN PC PIN
- Stock
- 10,000
- In Stock ：
- 10,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Isocom Components
- Product Category :
- Optical Sensors - Photointerrupters - Slot Type - Transistor Output
- Type :
- Unamplified
- Forward Voltage :
- 1.7V
- Published :
- 1997
- Power Dissipation :
- 150mW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 1.7V
- Forward Current :
- 60mA
- Voltage - Collector Emitter Breakdown (Max) :
- 30V
- Number of Elements :
- 1
- Number of Pins :
- 4
- Current - DC Forward (If) (Max) :
- 60mA
- Mounting Type :
- Through Hole, Flange
- Voltage - Rated DC :
- 30V
- Packaging :
- Tube
- Package / Case :
- Slotted, PC Pins
- Reverse Breakdown Voltage :
- 6V
- Mount :
- Through Hole
- Collector Emitter Voltage (VCEO) :
- 30V
- Operating Temperature :
- -55°C~100°C
- Max Collector Current :
- 5.5mA
- Lead Free :
- Lead Free
- Current - Collector (Ic) (Max) :
- 5.5mA
- Response Time :
- 8µs, 50µs
- Output Configuration :
- Phototransistor
- Max Operating Temperature :
- 100°C
- Sensing Method :
- Through-Beam
- Input Current :
- 60mA
- Rise Time :
- 8μs
- Collector Emitter Breakdown Voltage :
- 30V
- Sensing Distance :
- 0.118 (3mm)
- Min Operating Temperature :
- -55°C
- Datasheets
- H22A3
H22A3 Documents
H22A3 datasheet pdf and Optical Sensors - Photointerrupters - Slot Type - Transistor Output product details from ON Semiconductor stock available at
