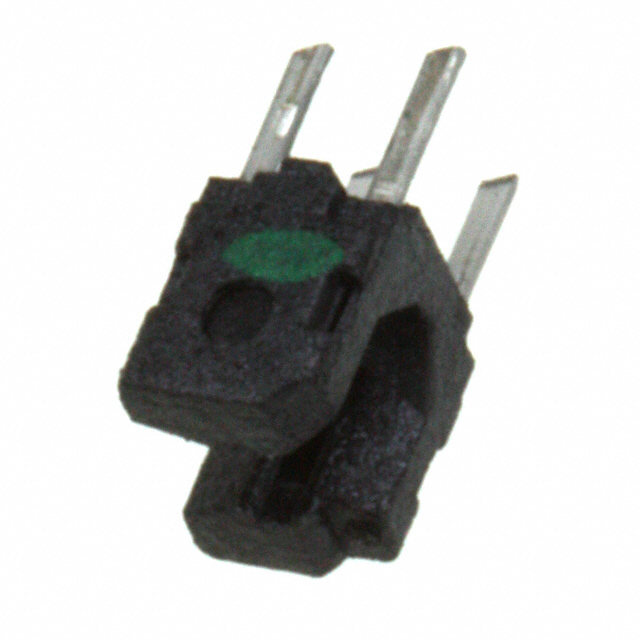

GP1S196HCZ0F
Or copy the link below:
- Mfr.Part #
- GP1S196HCZ0F
- Manufacturer
- Socle Technology Corporation
- Package / Case
- PCB Mount
- Datasheet
- Download
- Description
- SENSOR OPT SLOT PHOTOTRAN PCB MT
- Stock
- 19,810
- In Stock ：
- 19,810
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Socle Technology Corporation
- Product Category :
- Optical Sensors - Photointerrupters - Slot Type - Transistor Output
- Type :
- Unamplified
- REACH SVHC :
- No SVHC
- Number of Elements :
- 1
- Fall Time (Typ) :
- 150 μs
- Operating Temperature :
- -25°C~85°C
- Slot Width-Nom :
- 1.1mm
- Rise Time :
- 150μs
- Wavelength :
- 930 nm
- Output Voltage :
- 35V
- Width :
- 2mm
- On-state Collector Current-Nom :
- 20mA
- RoHS Status :
- RoHS Compliant
- JESD-609 Code :
- e2
- Power Dissipation :
- 100mW
- Sensing Distance :
- 0.043 (1.1mm)
- Number of Pins :
- 4
- Contact Plating :
- Copper, Tin
- Sensing Method :
- Through-Beam
- Package / Case :
- PCB Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Max Collector Current :
- 20mA
- Collector Emitter Voltage (VCEO) :
- 35V
- Output Configuration :
- Phototransistor
- Mounting Type :
- Through Hole
- Forward Current :
- 30mA
- Input Current :
- 20mA
- Mount :
- Through Hole
- Height :
- 2.7mm
- Terminal Finish :
- Tin/Copper (Sn/Cu)
- Number of Functions :
- 1
- Response Time :
- 50μs, 50μs
- Radiation Hardening :
- No
- Collector Emitter Breakdown Voltage :
- 35V
- Factory Lead Time :
- 16 Weeks
- Packaging :
- Tube
- Reverse Breakdown Voltage :
- 6V
- Length :
- 3.1mm
- Datasheets
- GP1S196HCZ0F
GP1S196HCZ0F Documents
GP1S196HCZ0F datasheet pdf and Optical Sensors - Photointerrupters - Slot Type - Transistor Output product details from SHARP/Socle Technology stock available at
