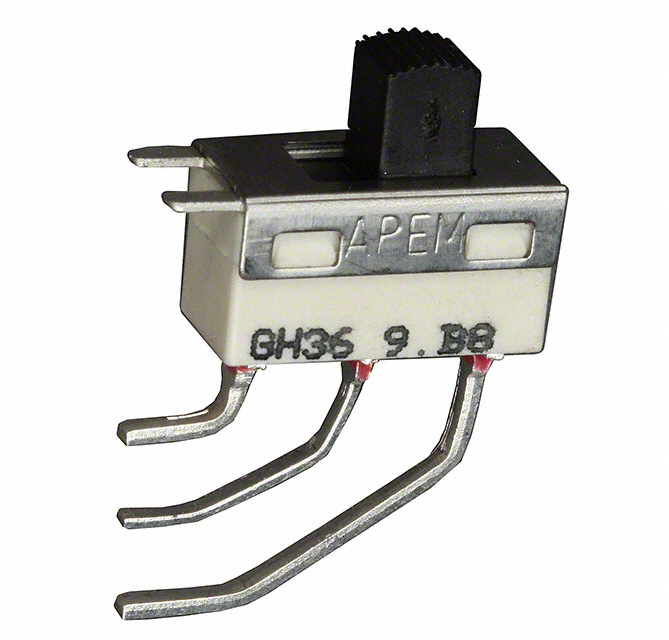

GH36WW10001
- Mfr.Part #
- GH36WW10001
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 3A 30V
- Stock
- 9,631
- In Stock :
- 9,631
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Switch Function :
- On-On
- Housing Material :
- Stainless Steel
- PCB Hole Count :
- 5
- Length :
- 6.65mm
- RoHS Status :
- ROHS3 Compliant
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Mount :
- Through Hole, Vertical
- Termination Style :
- PC Pin
- Contact Current(AC)-Max :
- 2A
- Contact Current Rating :
- 4A
- Body Breadth :
- 6.6548 mm
- Termination :
- PC Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Insulation Resistance :
- 1000000000Ohm
- Switch Travel :
- 2.20mm
- Mounting Type :
- Through Hole, Right Angle, Vertical
- Feature :
- Epoxy Sealed Terminals
- Max Current Rating :
- 4A
- Washability :
- Partial
- Contact Resistance :
- 0.01mOhm
- Contact (AC) Max Rating R Load :
- 2A@250VAC
- Actuator Length :
- 4.70mm
- Depth :
- 23.28mm
- Contact Material :
- Silver (Ag)
- Contact (DC) Max Rating R Load :
- 3A@30VDC
- Contact Plating :
- Silver
- Insulation Material :
- Thermoplastic
- Solderability :
- WAVE
- Electrical Life :
- 40,000 Cycles
- Max Voltage Rating (DC) :
- 30V
- Body Height :
- 19.3802mm
- Factory Lead Time :
- 9 Weeks
- Contact Timing :
- NOT SPECIFIED
- Current Rating :
- 3A
- Max Voltage Rating (AC) :
- 250V
- Contact Current(DC)-Max :
- 3A
- Illumination Type :
- Non-Illuminated
- Actuator Type :
- Standard
- Operating Temperature :
- -30°C~85°C
- Packaging :
- Bulk
- Series :
- G
- Current Rating (Amps) :
- 3A DC
- Voltage - Rated AC :
- 125V
- Circuit :
- SPDT
- Voltage - Rated DC :
- 30V
- Datasheets
- GH36WW10001
GH36WW10001 Documents
GH36WW10001 datasheet pdf and Slide Switches product details from APEM Inc. stock available at
