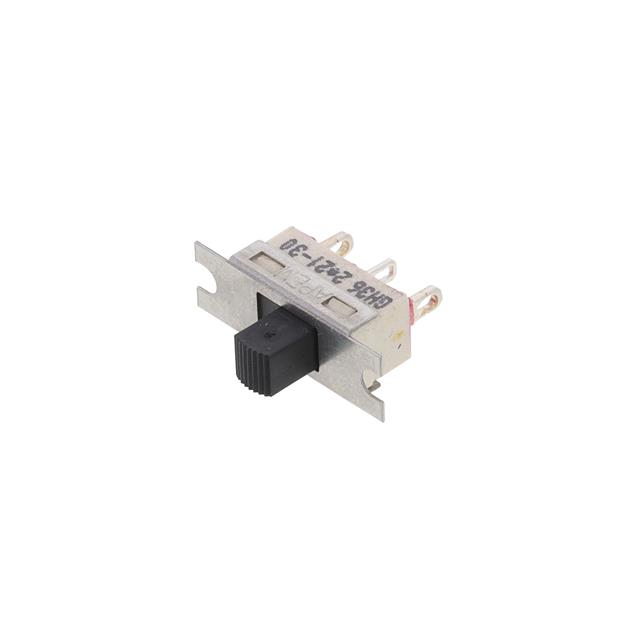

GH36S010001
- Mfr.Part #
- GH36S010001
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 3A 30V
- Stock
- 192
- In Stock :
- 192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Switch Function :
- On-On
- Actuator Type :
- Standard
- Switch Travel :
- 2.20mm
- Max Voltage Rating (AC) :
- 250V
- Orientation :
- Vertical
- Switch Type :
- SLIDE SWITCH
- Body Length or Diameter :
- 12.7mm
- Termination Style :
- Solder Lug
- Length - Termination :
- 0.165 inch
- Mount :
- Panel, Solder
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Contact Resistance :
- 10MOhm
- Voltage - Rated AC :
- 125V
- Contact Plating :
- Silver
- Pbfree Code :
- yes
- HTS Code :
- 8536.50.90.50
- Number of Positions :
- 2
- Current Rating (Amps) :
- 3A DC
- Insulation Resistance :
- 1000000000Ohm
- Illumination Type :
- Non-Illuminated
- Sealing :
- EPOXY TERMINAL SEALED
- Body Breadth :
- 5.8 mm
- Feature :
- Epoxy Sealed Terminals
- Voltage - Rated DC :
- 30V
- Contact Timing :
- NOT SPECIFIED
- Circuit :
- SPDT
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Washability :
- Partial
- ECCN Code :
- EAR99
- Contact (DC) Max Rating R Load :
- 3A@30VDC
- Contact Current Rating :
- 4A
- Contact (AC) Max Rating R Load :
- 4A@125VAC
- Contact Current(AC)-Max :
- 4A
- Factory Lead Time :
- 5 Weeks
- Packaging :
- Bulk
- Actuator Length :
- 5.10mm
- Contact Material :
- Silver (Ag)
- Max Voltage Rating (DC) :
- 30V
- Electrical Life :
- 40,000 Cycles
- Series :
- G
- Body Height :
- 6.35mm
- Contact Current(DC)-Max :
- 3A
- Mounting Type :
- Panel Mount
- JESD-609 Code :
- e4
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Solderability :
- WAVE
- Operating Temperature :
- -30°C~85°C
- Housing Material :
- Stainless Steel
- Current Rating :
- 3A
- Insulation Material :
- Thermoplastic
- Datasheets
- GH36S010001
