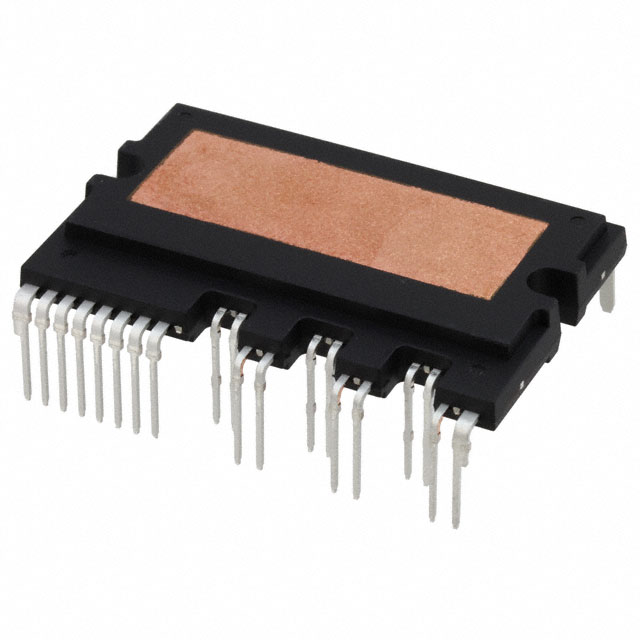

FSBB30CH60CT
Or copy the link below:
- Mfr.Part #
- FSBB30CH60CT
- Manufacturer
- onsemi
- Package / Case
- 27-PowerDIP Module (1.205, 30.60mm)
- Datasheet
- Download
- Description
- MODULE SPM 600V 30A SPMEC
- Stock
- 7,103
- In Stock ：
- 7,103
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Power Driver Modules
- Base Part Number :
- FSBB30CH60
- Power Dissipation :
- 103W
- Output Current-Max :
- 60A
- Mounting Type :
- Through Hole
- Lead Free :
- Lead Free
- Min Breakdown Voltage :
- 600V
- Height :
- 5.7mm
- Qualification Status :
- Not Qualified
- Supply Current-Max (Isup) :
- 23mA
- Weight :
- 21.978g
- Voltage - Isolation :
- 2500Vrms
- Terminal Finish :
- Tin (Sn)
- Collector Emitter Voltage (VCEO) :
- 2.6V
- Number of Pins :
- 27
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Functions :
- 1
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- Max Collector Current :
- 30A
- Configuration :
- 3 Phase
- Package / Case :
- 27-PowerDIP Module (1.205, 30.60mm)
- Width :
- 27mm
- Operating Supply Voltage :
- 400V
- Type :
- IGBT
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 150°C
- Published :
- 2014
- Power Supplies :
- 15V
- Series :
- Motion SPM® 3
- Max Current Rating :
- 30A
- Mount :
- Through Hole
- JESD-609 Code :
- e3
- Supply Voltage :
- 300V
- Factory Lead Time :
- 8 Weeks
- Terminal Position :
- Dual
- Number of Terminations :
- 27
- Length :
- 44.2mm
- Nominal Supply Current :
- 500μA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Supply Voltage :
- 450V
- Datasheets
- FSBB30CH60CT
FSBB30CH60CT datasheet pdf and Power Driver Modules product details from ON Semiconductor stock available at
