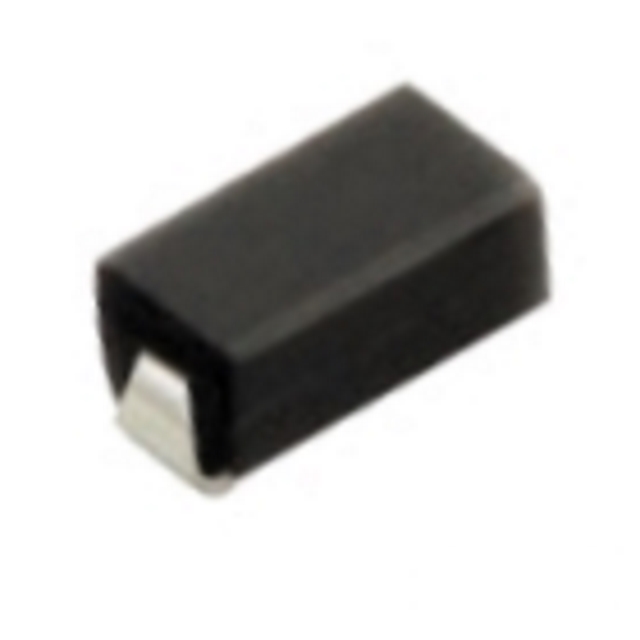

FM2000W

Manufacturer :

Rectron USA

Product Category :

Diodes - Rectifiers - Single

JESD-609 Code :

e3

Mounting Type :

Surface Mount

Pin Count :

2

Peak Reflow Temperature (Cel) :

265

Diode Element Material :

SILICON

ECCN Code :

EAR99

HTS Code :

8541.10.00.70

Operating Temperature - Junction :

-55°C ~ 175°C

Rep Pk Reverse Voltage-Max :

2000 V

Voltage - DC Reverse (Vr) (Max) :

2000 V

Manufacturer :

Rectron

Product Status :

Active

Current - Average Rectified (Io) :

1A

Supplier Device Package :

DO-214AC (SMA)

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 1 A

Diode Type :

Standard

Terminal Position :

Dual

Package :

Tape and Reel (TR)

JESD-30 Code :

R-PDSO-C2

RoHS :

Y

Terminal Finish :

Matte Tin (Sn)

Terminal Form :

C BEND

Capacitance @ Vr, F :

15pF @ 4V, 1MHz

Package Shape :

RECTANGULAR

Qualification Status :

Not Qualified

Series :

-

Reverse Recovery Time (trr) :

2 μs

Package / Case :

DO-214AC, SMA

Voltage :

Reverse Voltage Vr - 2000V

Output Current-Max :

0.2 A

Number of Terminals :

2

Reach Compliance Code :

not_compliant

Configuration :

Single

Packaging :

Case - SMX

Surface Mount :

yes

Pbfree Code :

yes

Current - Reverse Leakage @ Vr :

2 μA @ 2000 V

Speed :

Standard Recovery >500ns, > 200mA (Io)

Number of Elements :

1
