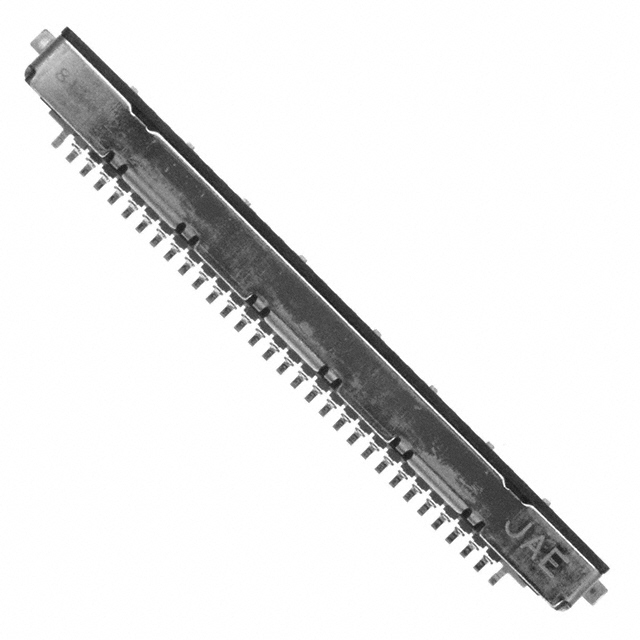

FI-E30S
Or copy the link below:
- Mfr.Part #
- FI-E30S
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 30P 0.039 GOLD SMD R/A
- Stock
- 64
- In Stock ：
- 64
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Receptacles, Female Sockets
- Feature :
- Ground Plate, Solder Retention
- Connector Type :
- Receptacle
- Mount :
- Surface Mount
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Applications :
- GENERAL PURPOSE
- Operating Temperature :
- -40°C~80°C
- Gender :
- FEMALE
- Voltage - Rated :
- 200V
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- 1A per Contact
- Insulation Resistance :
- 100MOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- FI-E
- Mounting Type :
- Surface Mount, Right Angle
- Number of Positions :
- 30
- Current Rating :
- 1A
- Insulation Material :
- Plastic
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Packaging :
- Tray
- Factory Lead Time :
- 14 Weeks
- Number of Contacts :
- 30
- Contact Material :
- COPPER ALLOY
- Published :
- 2000
- Housing Color :
- Black
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polymer
- Fastening Type :
- Latch Holder
- Contact Finish - Mating :
- Gold
- Contact Type :
- Non-Gendered
- Contact Finish - Post :
- Tin
- Contact Plating :
- Gold
- Insulation Height :
- 0.126 3.20mm
- Pitch :
- 1mm
- Pitch - Mating :
- 0.039 1.00mm
- Datasheets
- FI-E30S
1 Rows Receptacle Solder Copper Alloy Surface Mount, Right Angle Tray Gold Plastic 30 Positions Non-Gendered
FI-E30S Overview
The product comes in a package of Receptacle.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the FI-E Series.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Ground Plate, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -40°C~80°C.
FI-E30S Features
FI-E series
FI-E30S Applications
There are a lot of JAE Electronics
FI-E30S Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
