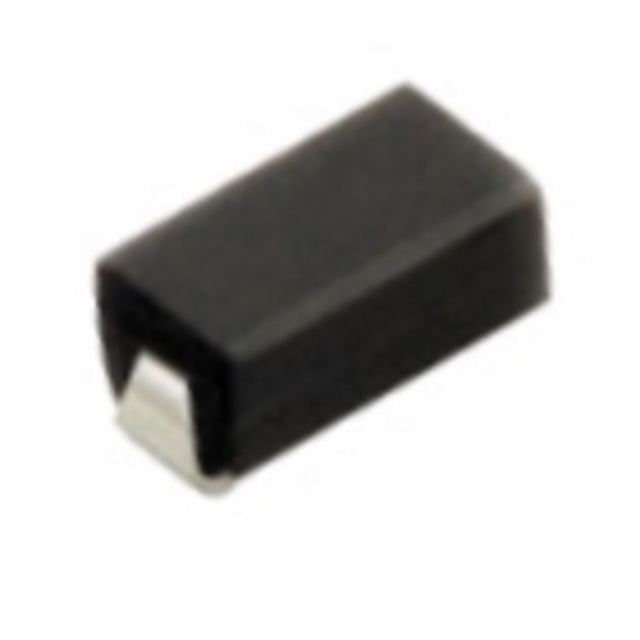

FFM104W-W
- Mfr.Part #
- FFM104W-W
- Manufacturer
- Rectron USA
- Package / Case
- DO-214AC, SMA
- Datasheet
- Download
- Description
- FAST RECOVERY DIODE 400V 1A
- Stock
- 14,352
- In Stock :
- 14,352
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Rectron USA
- Product Category :
- Diodes - Rectifiers - Single
- Manufacturer :
- Rectron
- Packaging :
- Tape and Reel
- Reverse Recovery Time-Max :
- 0.15 μs
- Product Category :
- Rectifiers
- Military :
- No
- Terminal Form :
- C BEND
- Terminal Position :
- Dual
- Operating Temperature - Junction :
- -55°C ~ 150°C
- Product :
- Rectifiers
- RoHS :
- Details
- Current - Average Rectified (Io) :
- 1A
- Peak Forward Voltage (V) :
- 1.3
- Pbfree Code :
- yes
- Maximum DC Reverse Voltage (V) :
- 400
- Maximum Continuous Forward Current (A) :
- 1@Ta=55C
- Maximum Operating Temperature (°C) :
- 150
- Series :
- FFM10
- Output Current-Max :
- 1 A
- JESD-609 Code :
- e3
- Number of Elements :
- 1
- Mounting :
- Surface Mount
- Pin Count :
- 2
- Package Length :
- 4.57(Max)
- Package :
- Tape and Reel (TR)
- Product Type :
- Rectifiers
- Mounting Type :
- Surface Mount
- Peak Non-Repetitive Surge Current (A) :
- 30
- Terminal Finish :
- Matte Tin (Sn)
- Product Status :
- Active
- Package Shape :
- RECTANGULAR
- Subcategory :
- Diodes and Rectifiers
- Qualification Status :
- Not Qualified
- Peak Reverse Recovery Time (ns) :
- 150
- Capacitance @ Vr, F :
- 15pF @ 4V, 1MHz
- Voltage - DC Reverse (Vr) (Max) :
- 400 V
- HTS Code :
- 8541.10.00.80
- Diode Element Material :
- SILICON
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Material :
- Si
- Reverse Recovery Time (trr) :
- 150 ns
- Reach Compliance Code :
- Compliant
- Supplier Device Package :
- SMX
- Package / Case :
- DO-214AC, SMA
- Number of Terminals :
- 2
- Package Width :
- 2.79(Max)
- Type :
- Switching Diode
- Package Height :
- 2.31(Max)
- Current - Reverse Leakage @ Vr :
- 5 µA @ 400 V
- Automotive :
- No
- Minimum Operating Temperature (°C) :
- -55
- JESD-30 Code :
- R-PDSO-C2
- Peak Reverse Current (uA) :
- 5
- Configuration :
- Single
- ECCN Code :
- EAR99
- Peak Reflow Temperature (Cel) :
- 265
- ECCN (US) :
- EAR99
- PCB changed :
- 2
- Surface Mount :
- yes
- Rep Pk Reverse Voltage-Max :
- 400 V
- HTS :
- 8541.10.00.80
- Brand :
- Rectron
- Voltage - Forward (Vf) (Max) @ If :
- 1.3 V @ 1 A
- Peak Reverse Repetitive Voltage (V) :
- 400
- Additional Feature :
- METALLURGICALLY BONDED
- Supplier Package :
- SMX
- Diode Type :
- Standard
- Datasheets
- FFM104W-W

Standard 15pF @ 4V, 1MHz SILICON 265 DUAL Tape and Reel DO-214AC, SMA
FFM104W-W Overview
According to the datasheets, the peak forward voltage is 1.3 volts.RF diode consumes approximately 1@Ta=55C in continuous forward current at any given moment.For operation, a DC reverse voltage less than 400 must be applied.This device can read a maximum voltage of 1 A.
FFM104W-W Features
the forward peak voltage is 1.3
a maximum output current voltage of 1 A
FFM104W-W Applications
There are a lot of Rectron
FFM104W-W applications of RF diodes.
- RF voltage doubler
- Wearables
- Smart metering
- Set top boxes
- RF attenuators and switches
- Low-loss, high-power limiters
- Receiver protectors
- UHF mixer
- Sampling circuits
- Modulators
