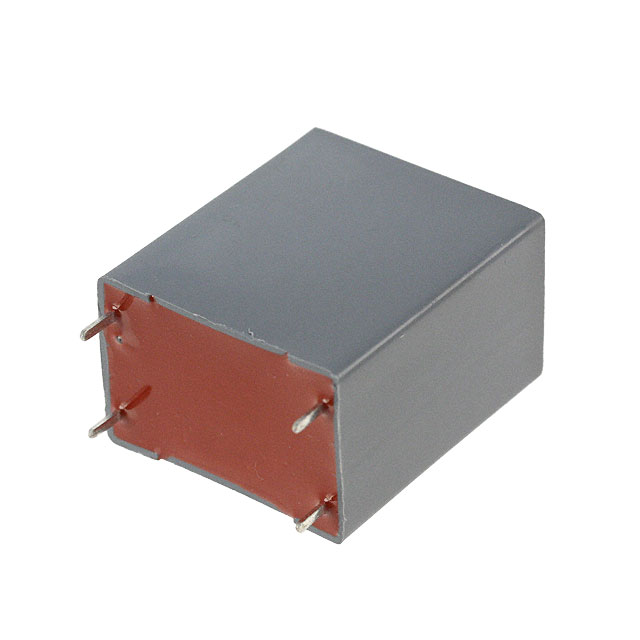

FFB54D0117KJC
Or copy the link below:
- Mfr.Part #
- FFB54D0117KJC
- Manufacturer
- KYOCERA AVX
- Package / Case
- Radial - 4 Leads
- Datasheet
- Download
- Description
- CAP FILM 110UF 10% 75VDC RADIAL
- Stock
- 48
- In Stock ：
- 48
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KYOCERA AVX
- Product Category :
- Film Capacitors
- ECCN Code :
- EAR99
- Mount :
- PCB, Through Hole
- Voltage - Rated DC :
- 75V
- Mounting Type :
- Through Hole
- Size / Dimension :
- 1.260Lx0.866W 32.00mmx22.00mm
- Published :
- 2011
- Package / Case :
- Radial - 4 Leads
- Number of Terminations :
- 2
- Dielectric Material :
- Polyester, Metallized
- Dielectric :
- PET
- Capacitor Type :
- FILM CAPACITOR
- HTS Code :
- 8532.25.00.70
- Depth :
- 22mm
- Tolerance :
- ±10%
- Height :
- 37mm
- Lead Pitch :
- 27.5mm
- Number of Pins :
- 4
- Lead Length :
- 5.5mm
- Current Rating :
- 10A
- Capacitance :
- 110μF
- Applications :
- DC Link, DC Filtering
- Voltage - Rated AC :
- 45V
- Terminal Shape :
- Wire
- Lead Spacing :
- 1.083 27.50mm
- Pbfree Code :
- yes
- Termination :
- PC Pins
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -55°C~105°C
- Lead Diameter :
- 1.2 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Voltage :
- 75V
- ESR (Equivalent Series Resistance) :
- 1.4mOhm
- Height Seated (Max) :
- 1.457 37.00mm
- Factory Lead Time :
- 16 Weeks
- Series :
- FFB
- Datasheets
- FFB54D0117KJC
FFB54D0117KJC Documents
FFB 110μF Film Capacitor ±10% Radial - 4 Leads PC Pins 75V-DC 45V-AC Polyester, Metallized PCB, Through Hole
FFB54D0117KJC Overview
There is 1.4mOhm ESR (Equivalent Series Resistance) from the device.The lead spacing of this electrical device is 1.083 27.50mm.There is a current rating of 10A for this electrical device.The device is capable of operating at the temperature of -55°C~105°C.
FFB54D0117KJC Features
1.4mOhm equivalent series resistance (ESR)
a current rating of 10A
FFB54D0117KJC Applications
There are a lot of AVX Corporation
FFB54D0117KJC applications of film capacitors.
- Blocking
- Coupling, decoupling
- Bypassing
- RFI for automotive
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
