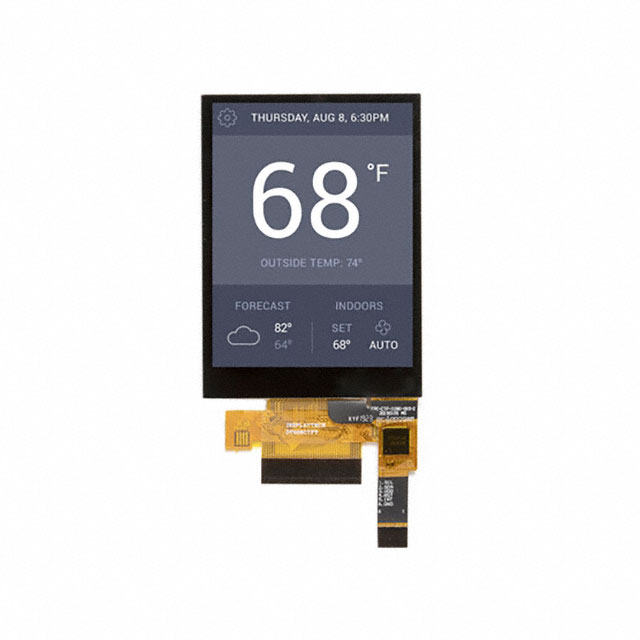

DT028CTFT-PTS2

Manufacturer :

Displaytech

Product Category :

Width :

50mm

Packaging :

Bulk

Graphics Color :

Red, Green, Blue (RGB)

Resolution :

240 x 320pixels

Current Rating :

80mA

Display Mode :

Transmissive

Interface :

Parallel, 18-Bit (RGB)

Dot Size :

-

Series :

DT028

Diagonal Screen Size :

2.8 (71.12mm)

Viewing Area :

43.20mm W x 57.60mm H

Background Color :

-

Operating Supply Current :

80 mA

Dot Pitch :

0.18mm W x 0.18mm H

Depth :

4.32mm

Supply Voltage :

2.8 V

Interface Type :

Parallel, RGB, SPI

Dot Pixels :

320 x 240 (QVGA)

Operating Supply Voltage :

2.5 V to 3.3 V

Backlight Type :

LED

Operating Temperature Range :

-20 → 70°C

RoHS :

Details

Brightness :

430cd/m²

Dimensions :

50 x 69.2 mm, 50 x 69.20 x 4.32 mm

Base Product Number :

DT028

Voltage Rating :

2.5 → 3.3V

Minimum Operating Temperature :

- 20 C

Contrast Ratio :

20.8340277777778

Product :

TFT LCD Display Modules

Maximum Operating Temperature :

+ 70 C

Product Status :

Active

Package :

Bulk

Display Type :

TFT

Touchscreen :

Capacitive

Backlight :

LED

Height :

69.2mm

Response Time :

35ms
