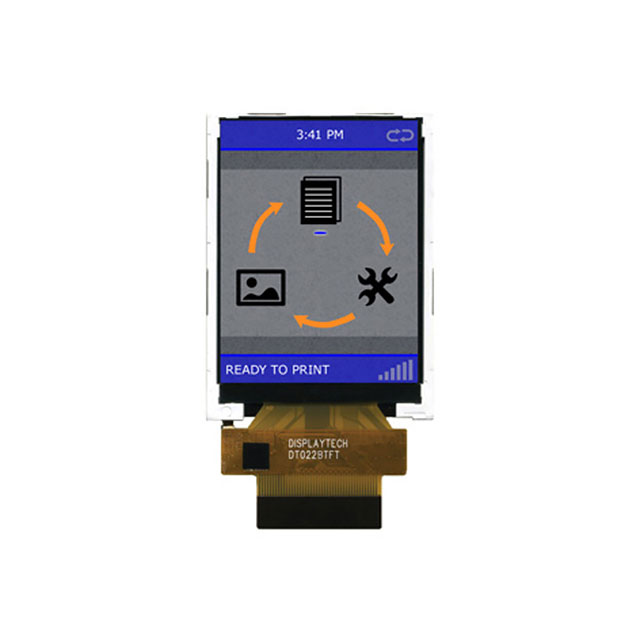

DT022BTFT

Manufacturer :

Displaytech

Product Category :

Contrast Ratio :

350:1

Max Operating Temperature :

70°C

Display Mode :

Transmissive

Height :

56.16mm

Pbfree Code :

yes

Viewing Area (height) :

45.12mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

41.7mm

Display Type :

TFT - Color

Operating Supply Voltage :

2.8V

Backlight :

LED

RoHS Status :

RoHS Compliant

Interface :

Parallel

Resolution (height) :

320 pixel

Pixel Format :

320X240

Brightness :

200 cd/m^2

Supply Voltage :

2.8V

Published :

2011

Factory Lead Time :

18 Weeks

Touchscreen :

No

Optoelectronic Device Type :

GRAPHIC DOT MATRIX LCD DISPLAY

Resolution (width) :

240 pixel

Viewing Area :

33.84mm W x 45.12mm H

Supply Voltage-Max (Vsup) :

3.3V

Graphics Color :

Red, Green, Blue (RGB)

Response Time :

20 ms

Diagonal Size :

2.2 in

Diagonal Screen Size :

2.2 55.88mm

Dot Pixels :

240 x 320

Viewing Area (width) :

33.84mm

Package / Case :

Module

Depth :

3.2mm

Min Operating Temperature :

-20°C
