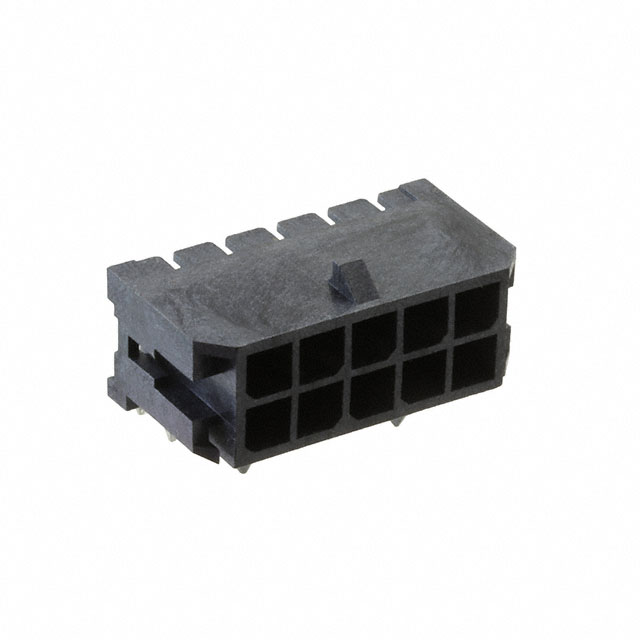

DML-10-A-H-T-A
Or copy the link below:
- Mfr.Part #
- DML-10-A-H-T-A
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 3MM
- Stock
- 2,464
- In Stock ：
- 2,464
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Contact Material :
- Brass
- Pitch - Mating :
- 0.118 3.00mm
- Feature :
- Board Lock
- Current Rating (Amps) :
- Varies by WireGAuge
- Material Flammability Rating :
- UL94 V-0
- Mounting Option 1 :
- FRICTION RAMP
- Insulation Material :
- Thermoplastic
- Number of Positions :
- 10
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Reference Standard :
- UL
- Mating Contact Pitch :
- 0.118 inch
- Number of Positions Loaded :
- All
- Reliability :
- COMMERCIAL
- Dielectric Withstanding Voltage :
- 1500VAC V
- Style :
- Board to Cable/Wire
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 9 Weeks
- Termination :
- Solder
- Body Depth :
- 0.469 inch
- Contact Shape :
- Square
- Insulation Color :
- Black
- Packaging :
- Bulk
- Body Length or Diameter :
- 0.709 inch
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Insulation Height :
- 0.270 6.86mm
- Connector Type :
- Header
- Series :
- DML
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 2
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish - Mating :
- Tin
- Contact Gender :
- FEMALE
- Voltage - Rated :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole, Right Angle
- Contact Length - Post :
- 0.125 3.18mm
- Datasheets
- DML-10-A-H-T-A
DML Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Thermoplastic 10-Position Board to Cable/Wire 0.270 6.86mm Height
DML-10-A-H-T-A Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the DML Series of products.Its Board Lock feature renders it more powerful in many ways.
DML-10-A-H-T-A Features
DML series
DML-10-A-H-T-A Applications
There are a lot of Adam Tech
DML-10-A-H-T-A Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
