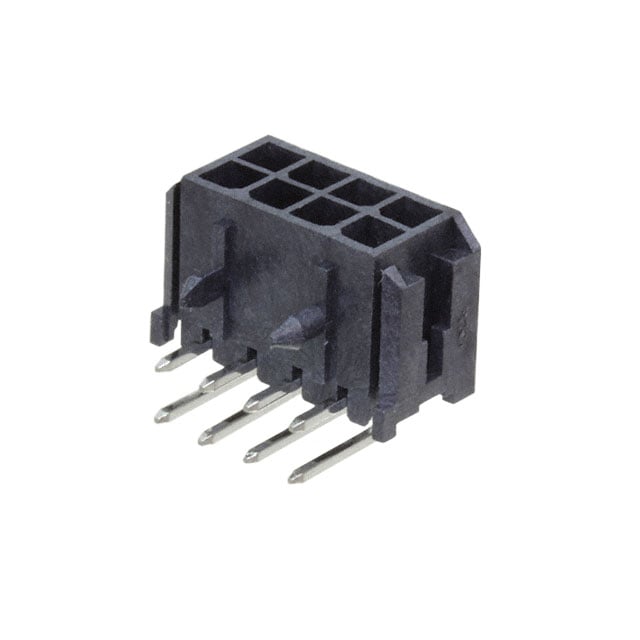

DML-08-A-H-T-A
Or copy the link below:
- Mfr.Part #
- DML-08-A-H-T-A
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 3MM
- Stock
- 3,358
- In Stock ：
- 3,358
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Packaging :
- Bulk
- Current Rating (Amps) :
- Varies by WireGAuge
- Row Spacing - Mating :
- 0.118 (3.00mm)
- JESD-609 Code :
- e3
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions :
- 8
- Contact Resistance :
- 10MOhm
- Insulation Height :
- 0.270 6.86mm
- Number of Positions Loaded :
- All
- PCB Contact Pattern :
- RECTANGULAR
- Body Length or Diameter :
- 0.591 inch
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Mounting Type :
- Through Hole, Right Angle
- Dielectric Withstanding Voltage :
- 1500VAC V
- Termination :
- Solder
- Mounting Option 1 :
- FRICTION RAMP
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- FEMALE
- Number of Conductors :
- ONE
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Black
- Number Of PCB Rows :
- 2
- Number of Rows :
- 2
- Contact Length - Post :
- 0.125 3.18mm
- Connector Type :
- Header
- Pitch - Mating :
- 0.118 3.00mm
- Reliability :
- COMMERCIAL
- Body Depth :
- 0.469 inch
- Shrouding :
- Shrouded - 4 Wall
- Series :
- DML
- Fastening Type :
- Locking Ramp
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 9 Weeks
- Contact Finish - Mating :
- Tin
- Voltage - Rated :
- 250V
- Insulation Material :
- Thermoplastic
- Feature :
- Board Lock
- Reference Standard :
- UL
- Datasheets
- DML-08-A-H-T-A
DML-08-A-H-T-A Documents
DML Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Thermoplastic 8-Position Board to Cable/Wire 0.270 6.86mm Height
DML-08-A-H-T-A Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number DML belongs to the DML Series.In many ways, it is more powerful due to its Board Lock feature.
DML-08-A-H-T-A Features
DML series
DML-08-A-H-T-A Applications
There are a lot of Adam Tech
DML-08-A-H-T-A Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
