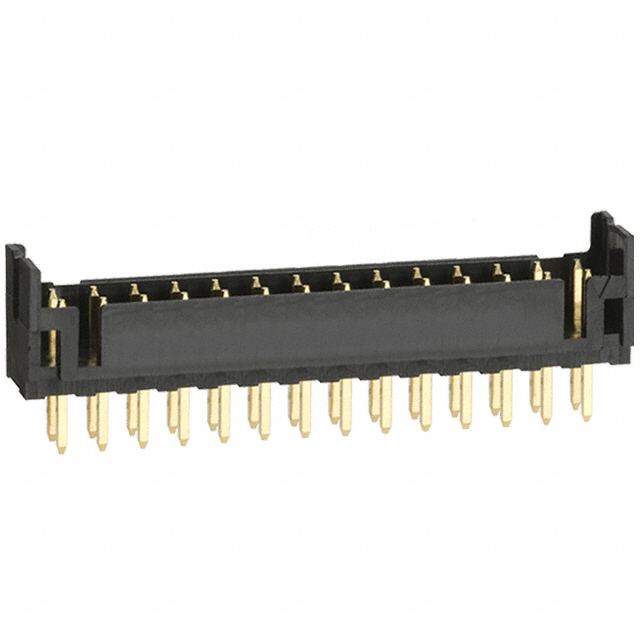

DF11-28DP-2DSA(01)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Number of Rows :

2

Mating Contact Pitch :

0.079 inch

Body Breadth :

0.197 inch

Mount :

Through Hole

MIL Conformance :

No

Contact Shape :

Square

Stack Height (Mating) :

7.55 7.8mm 8.9mm

Dielectric Withstanding Voltage :

650VAC V

Lead Free :

Lead Free

Filter Feature :

No

Contact Resistance :

30mOhm

Insulation Material :

Polyamide (PA), Nylon

Current Rating :

2A

PCB Contact Pattern :

RECTANGULAR

Row Spacing - Mating :

0.079 (2.00mm)

Published :

2004

Durability :

50 Cycles

Style :

Board to Board or Cable

Reference Standard :

UL, CSA

Voltage - Rated :

250V

Insulation Height :

0.260 6.60mm

Pbfree Code :

yes

Packaging :

Bulk

Overall Contact Length :

0.299 7.60mm

Shrouding :

Shrouded - 4 Wall

Operating Temperature :

-30°C~85°C

Number of Positions :

28

Pitch - Mating :

0.079 2.00mm

Contact Material :

Brass

Withdrawl Force-Min :

.3058 N

UL Flammability Code :

94V-0

Housing Material :

Polyamide

Height :

6.6mm

Contact Length - Post :

0.118 3.00mm

Housing Color :

Black

Reach Compliance Code :

Unknown

RoHS Status :

RoHS Compliant

Number Of PCB Rows :

2

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

10 Weeks

Fastening Type :

Detent Lock

Polarization Key :

GUIDE SLOT(S)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Contact Finish Thickness - Mating :

8.00μin 0.203μm

Option :

GENERAL PURPOSE

Termination :

Solder

Length :

30mm

Contact Length - Mating :

0.118 3.00mm

Number of Positions Loaded :

All

Connector Type :

Header

Mounting Type :

Through Hole

Contact Type :

Male Pin

Series :

DF11

DIN Conformance :

No

Lead Pitch :

2mm

Reliability :

COMMERCIAL

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

100 PCS. PER BAG PACKAGING

Insulation Resistance :

1000000000Ohm

Contact Finish - Mating :

Gold

Gender :

Male

JESD-609 Code :

e4

Rated Current (Signal) :

2A
