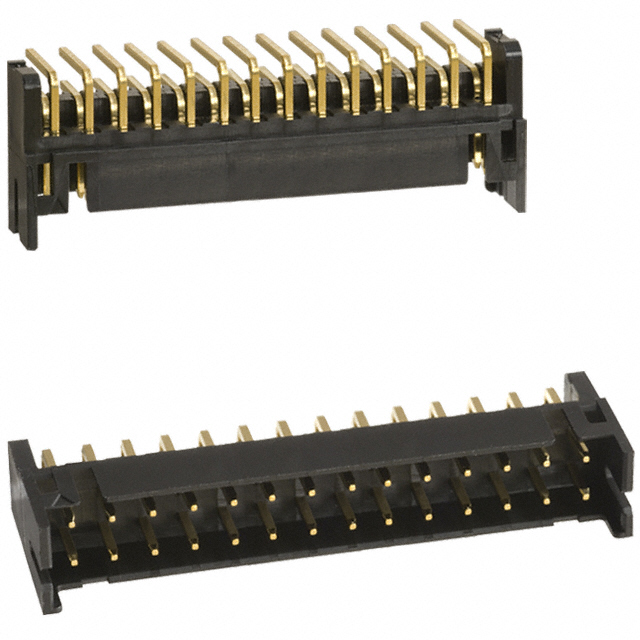

DF11-28DP-2DS(52)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Contact Resistance :

30mOhm

Mixed Contacts :

No

Connector Type :

Header

Withdrawl Force-Min :

.3058 N

DIN Conformance :

No

Pitch - Mating :

0.079 2.00mm

HTS Code :

8536.69.40.40

Factory Lead Time :

10 Weeks

ECCN Code :

EAR99

Lead Pitch :

2mm

Housing Material :

Polyamide

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

MIL Conformance :

No

Mounting Type :

Through Hole, Right Angle

Radiation Hardening :

No

Contact Finish - Mating :

Gold

Gender :

Male

IEC Conformance :

No

Contact Finish Thickness - Mating :

8.00μin 0.203μm

Height :

5mm

Row Spacing - Mating :

0.079 (2.00mm)

Body Breadth :

0.197 inch

Reliability :

COMMERCIAL

Contact Length - Mating :

0.118 3.00mm

Pbfree Code :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Housing Color :

Black

Length :

30mm

Termination :

Solder

Style :

Board to Board or Cable

Operating Temperature :

-40°C~85°C

JESD-609 Code :

e4

Dielectric Withstanding Voltage :

650VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

50 Cycles

Reference Standard :

UL, CSA

Filter Feature :

No

Rated Current (Signal) :

2A

Width :

10mm

Packaging :

Tube

Contact Material :

Brass

Insulation Resistance :

1000000000Ohm

PCB Contact Pattern :

RECTANGULAR

Current Rating :

2A

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Orientation :

RIGHT ANGLE

Contact Length - Post :

0.118 3.00mm

Number of Positions :

28

Contact Type :

Male Pin

Option :

GENERAL PURPOSE

Body Depth :

0.394 inch

Voltage - Rated :

250V

Mating Contact Pitch :

0.079 inch

Insulation Material :

Polyamide (PA), Nylon

Published :

2004

Polarization Key :

GUIDE SLOT(S)

Insulation Height :

0.197 5.00mm

RoHS Status :

RoHS Compliant

Number of Rows :

2

Series :

DF11

Number of Conductors :

ONE

Lead Free :

Lead Free

Number of Positions Loaded :

All

Fastening Type :

Detent Lock

Mount :

Through Hole
