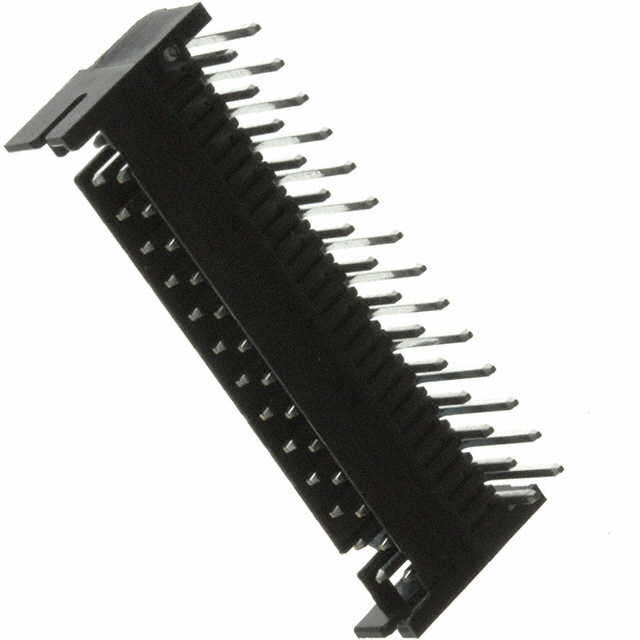

DF11-28DP-2DS(24)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Material Flammability Rating :

UL94 V-0

Voltage - Rated AC :

30V

Row Spacing - Mating :

0.079 (2.00mm)

Published :

2010

Number of Positions :

28

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

GUIDE SLOT(S)

Contact Type :

Male Pin

Number of Conductors :

ONE

Operating Temperature :

-40°C~85°C

REACH SVHC :

No SVHC

Durability :

30 Cycles

Reach Compliance Code :

Unknown

Withdrawl Force-Min :

.3058 N

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.197 5.00mm

Dielectric Withstanding Voltage :

650VAC V

Termination :

Solder

Contact Length - Post :

0.118 3.00mm

Housing Material :

Polyamide

Gender :

Male

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.079 inch

Connector Type :

Header

Contact Shape :

Square

Orientation :

RIGHT ANGLE

Contact Material :

Brass

MIL Conformance :

No

Factory Lead Time :

10 Weeks

Voltage - Rated :

250V

Mount :

Through Hole

Option :

GENERAL PURPOSE

Contact Length - Mating :

0.118 3.00mm

Rated Current (Signal) :

2A

JESD-609 Code :

e3

Housing Color :

Black

Contact Finish - Mating :

Tin

PCB Contact Pattern :

RECTANGULAR

Length :

30mm

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Fastening Type :

Detent Lock

Insulation Material :

Polyamide (PA), Nylon

Insulation Resistance :

1GOhm

Lead Pitch :

2mm

Mixed Contacts :

No

Filter Feature :

No

Mounting Type :

Through Hole, Right Angle

Current Rating :

2A

Series :

DF11

Reliability :

COMMERCIAL

Number of Rows :

2

Number of Positions Loaded :

All

Height :

5mm

Contact Resistance :

30mOhm

Pitch - Mating :

0.079 2.00mm

Style :

Board to Board or Cable

IEC Conformance :

No

DIN Conformance :

No

Body Depth :

0.394 inch

Pbfree Code :

yes

Reference Standard :

UL, CSA

Body Breadth :

0.197 inch

Additional Feature :

NONE

Number Of PCB Rows :

2
