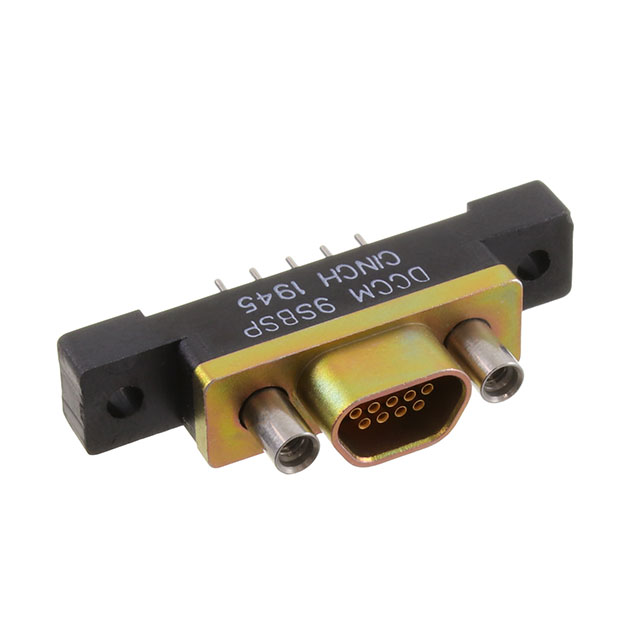

DCCM9SBSP
Or copy the link below:
- Mfr.Part #
- DCCM9SBSP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D RCPT 9POS VERT SLDR
- Stock
- 35,458
- In Stock ：
- 35,458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Mounting Option 2 :
- JACKPOST
- Additional Feature :
- ENVIRONMENTAL CLASS
- Number of Positions :
- 9
- Connector Style :
- D-Type, Micro-D
- Body Breadth :
- 0.308 inch
- Insertion Force-Max :
- 1.668 N
- Dielectric Withstanding Voltage :
- 600VAC V
- Body Depth :
- 0.355 inch
- Reliability :
- COMMERCIAL
- Contact Finish :
- Gold
- Flange Feature :
- Mating Side, Female Screwlock
- Feature :
- Shielded
- Contact Material :
- COPPER ALLOY
- Mating Contact Row Spacing :
- 0.05 inch
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Current Rating (Amps) :
- 3A
- Total Number of Contacts :
- 9
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Shell Finish :
- Nickel
- Mating Contact Pitch :
- 0.05 inch
- Insulation Resistance :
- 5000000000Ohm
- Connector Type :
- Receptacle, Female Sockets
- Contact Type :
- Signal
- Plating Thickness :
- 50μin
- Number of Rows :
- 2
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~135°C
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- STAGGERED
- Number Of PCB Rows :
- 2
- Contact Resistance :
- 8mOhm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Series :
- Dura-Con™
- Termination :
- Solder
- Contact Form :
- Machined
- Factory Lead Time :
- 31 Weeks
- Packaging :
- Bulk
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole
- Datasheets
- DCCM9SBSP
DCCM9SBSP Documents
Dura-Con™ Series D-Type, Micro-D Receptacle, Female Sockets 9-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
DCCM9SBSP Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Dura-Con™ Series of products.In addition, there are other features such as ENVIRONMENTAL CLASS, to mention only a few.Its Shielded feature renders it more powerful in many ways.The device runs in -55°C~135°C Operating Temperature.
DCCM9SBSP Features
Dura-Con™ series
DCCM9SBSP Applications
There are a lot of Cinch Connectivity Solutions
DCCM9SBSP D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
