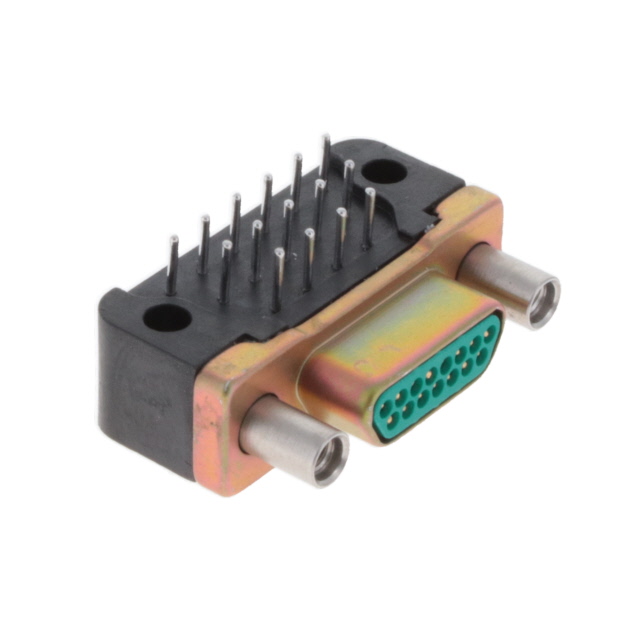

DCCM15PBSP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Mating Contact Row Spacing :

0.05 inch

Mounting Type :

Through Hole

Insulation Resistance :

5000000000Ohm

RoHS Status :

Non-RoHS Compliant

Material Flammability Rating :

UL94 V-0

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Insertion Force-Max :

1.668 N

Factory Lead Time :

31 Weeks

Mounting Option 2 :

JACKPOST

Shell Finish :

CADMIUM/YELLOW CHROMATE

Packaging :

Bulk

Operating Temperature :

-55°C~135°C

Plating Thickness :

50μin

Number Of PCB Rows :

2

Contact Form :

Machined

Contact Material :

COPPER ALLOY

Feature :

Shielded

Connector Style :

D-Type, Micro-D

Additional Feature :

ENVIRONMENTAL CLASS

Contact Resistance :

8mOhm

Flange Feature :

Mating Side, Female Screwlock

Body Breadth :

0.308 inch

Reliability :

COMMERCIAL

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL

Body Length or Diameter :

1.39 inch

Series :

Dura-Con™

Number of Rows :

2

Dielectric Withstanding Voltage :

600VAC V

Length - Termination :

0.109 inch

Contact Finish Thickness :

50.0μin 1.27μm

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Contact Finish :

Gold

Body Depth :

0.355 inch

Contact Type :

Signal

Current Rating (Amps) :

3A

Connector Type :

Plug, Male Pins

Withdrawl Force-Min :

.139 N

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Contact Pitch :

0.05 inch

Termination :

Solder

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Total Number of Contacts :

15

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Number of Positions :

15
