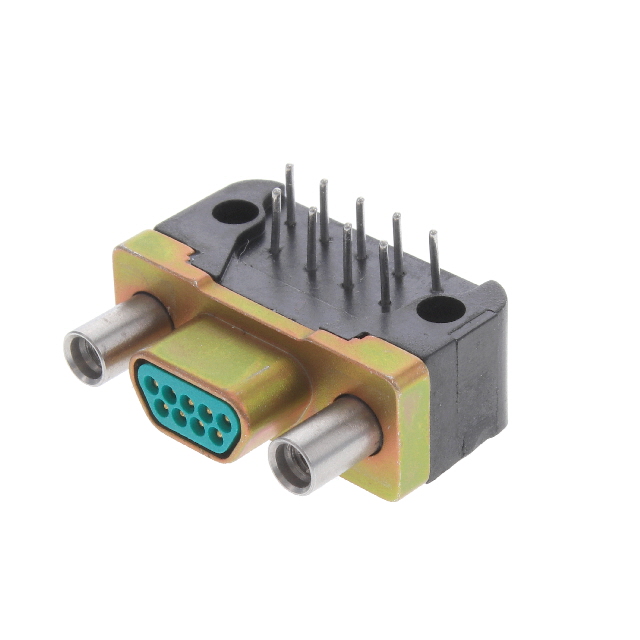

DCCM9PCBRP
Or copy the link below:
- Mfr.Part #
- DCCM9PCBRP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 9POS R/A SLDR
- Stock
- 133
- In Stock ：
- 133
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Plating Thickness :
- 50μin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Length :
- 19.94mm
- Depth :
- 10.67mm
- Backset Spacing :
- 0.230 (5.84mm)
- Mating Contact Pitch :
- 0.05 inch
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Total Number of Contacts :
- 9
- Contact Type :
- Signal
- Flange Feature :
- Mating Side, Female Screwlock
- Radiation Hardening :
- No
- Operating Temperature :
- -55°C~135°C
- Number Of PCB Rows :
- 2
- Orientation :
- RIGHT ANGLE
- Additional Feature :
- ENVIRONMENTAL CLASS
- Insulation Resistance :
- 5000000000Ohm
- Housing Material :
- Polyester
- Connector Style :
- D-Type, Micro-D
- Reference Standard :
- UL
- Termination :
- Solder
- Number of Positions :
- 9
- Mounting Type :
- Through Hole, Right Angle
- Rated Current (Signal) :
- 3A
- Feature :
- Shielded
- Body Breadth :
- 0.308 inch
- Contact Form :
- Machined
- Contact Finish :
- Gold
- RoHS Status :
- Non-RoHS Compliant
- Connector Type :
- Plug, Male Pins
- Current Rating :
- 3A
- Series :
- Dura-Con™
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Dielectric Withstanding Voltage :
- 600VAC V
- Factory Lead Time :
- 31 Weeks
- Mounting Option 2 :
- JACKPOST
- PCB Contact Pattern :
- STAGGERED
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Shell Finish :
- CADMIUM/YELLOW CHROMATE
- Mating Contact Row Spacing :
- 0.05 inch
- Reliability :
- COMMERCIAL
- Number of Ports :
- 1
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Contact Resistance :
- 8mOhm
- Datasheets
- DCCM9PCBRP
DCCM9PCBRP Documents
Dura-Con™ Series D-Type, Micro-D Plug, Male Pins 9-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole, Right Angle Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
DCCM9PCBRP Overview
Packaging is Plug, Male Pins.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Dura-Con™ Series.Other features include ENVIRONMENTAL CLASS, to name just a few.A variety of tasks can be performed using its 1 ports.Several benefits come from the Shielded feature.Devices operate at -55°C~135°C operating temperatures.
DCCM9PCBRP Features
Dura-Con™ series
DCCM9PCBRP Applications
There are a lot of Cinch Connectivity Solutions
DCCM9PCBRP D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
