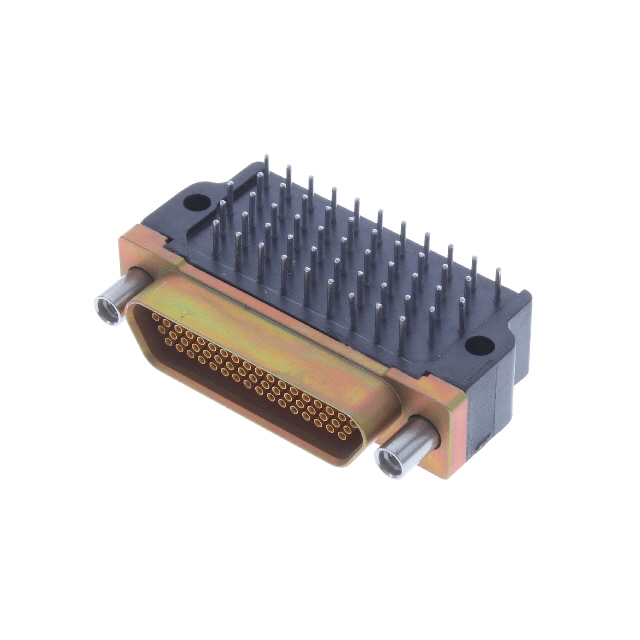

DCCM51SCBRPN
Or copy the link below:
- Mfr.Part #
- DCCM51SCBRPN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D RCPT 51POS R/A SLDR
- Stock
- 27
- In Stock ：
- 27
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Reference Standard :
- UL
- Factory Lead Time :
- 31 Weeks
- Terminal Pitch :
- 2.54mm
- Connector Style :
- D-Type, Micro-D
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Insertion Force-Max :
- 1.668 N
- Number of Rows :
- 3
- Mounting Option 2 :
- JACKPOST
- Additional Feature :
- ENVIRONMENTAL CLASS
- Contact Resistance :
- 8mOhm
- Dielectric Withstanding Voltage :
- 600VAC V
- Body Depth :
- 0.65 inch
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Insulation Resistance :
- 5000000000Ohm
- Mating Contact Row Spacing :
- 0.05 inch
- Reliability :
- COMMERCIAL
- Feature :
- Shielded
- Contact Finish :
- Gold
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Plating Thickness :
- 50μin
- Connector Type :
- Receptacle, Female Sockets
- Number of Positions :
- 51
- Contact Form :
- Machined
- RoHS Status :
- Non-RoHS Compliant
- Contact Type :
- Signal
- Body Length or Diameter :
- 1.485 inch
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Row Spacing :
- 2.54 mm
- Number Of PCB Rows :
- 5
- Packaging :
- Bulk
- Mating Contact Pitch :
- 0.05 inch
- PCB Contact Pattern :
- STAGGERED
- Backset Spacing :
- 0.150 (3.81mm)
- Series :
- Dura-Con™
- Flange Feature :
- Mating Side, Female Screwlock
- Operating Temperature :
- -55°C~135°C
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 51
- Length - Termination :
- 0.109 inch
- Shell Material, Finish :
- Aluminum Alloy, Nickel Plated, Electroless
- Termination :
- Solder
- Datasheets
- DCCM51SCBRPN
DCCM51SCBRPN Documents
Dura-Con™ Series D-Type, Micro-D Receptacle, Female Sockets 51-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole, Right Angle Copper Alloy Gold Aluminum Alloy, Nickel Plated, Electroless
DCCM51SCBRPN Overview
The packaging contains Receptacle, Female Sockets.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Dura-Con™ Series.To name a few, there is also ENVIRONMENTAL CLASS.There are a number of advantages to its Shielded feature.As a result, the device runs at -55°C~135°C Operating Temperature.
DCCM51SCBRPN Features
Dura-Con™ series
DCCM51SCBRPN Applications
There are a lot of Cinch Connectivity Solutions
DCCM51SCBRPN D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
