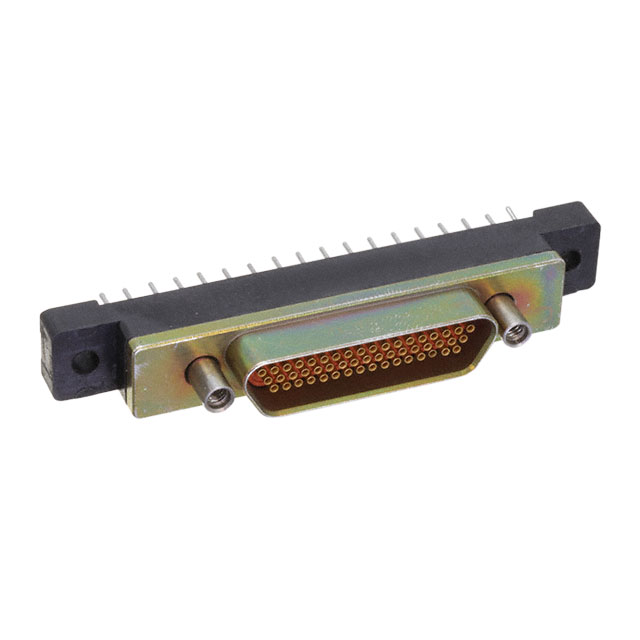

DCCM51SBSP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Feature :

Shielded

Reference Standard :

UL

Contact Resistance :

8mOhm

Series :

Dura-Con™

Total Number of Contacts :

51

Contact Finish Thickness :

50.0μin 1.27μm

Reliability :

COMMERCIAL

PCB Contact Row Spacing :

2.54 mm

Insertion Force-Max :

1.668 N

Mounting Option 2 :

JACKPOST

Length - Termination :

0.109 inch

Material Flammability Rating :

UL94 V-0

Connector Style :

D-Type, Micro-D

Current Rating (Amps) :

3A

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Terminal Pitch :

2.54mm

Mating Contact Row Spacing :

0.05 inch

Contact Finish :

Gold

Plating Thickness :

50μin

Connector Type :

Receptacle, Female Sockets

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Number of Positions :

51

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Operating Temperature :

-55°C~135°C

Number Of PCB Rows :

3

Additional Feature :

ENVIRONMENTAL CLASS

RoHS Status :

RoHS Compliant

Termination :

Solder

Dielectric Withstanding Voltage :

600VAC V

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Body Length or Diameter :

2.27 inch

Flange Feature :

Mating Side, Female Screwlock

Mounting Type :

Through Hole

PCB Contact Pattern :

STAGGERED

Contact Material :

COPPER ALLOY

Factory Lead Time :

31 Weeks

Contact Type :

Signal

Mating Contact Pitch :

0.05 inch

Packaging :

Bulk

Contact Form :

Machined

Number of Rows :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

5000000000Ohm
