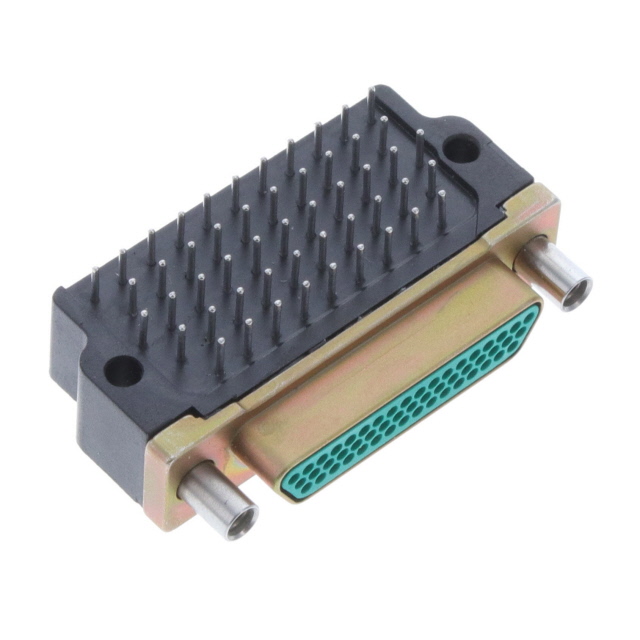

DCCM51PCBRP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Dielectric Withstanding Voltage :

600VAC V

Contact Type :

Signal

Connector Style :

D-Type, Micro-D

Connector Type :

Plug, Male Pins

Body Depth :

0.65 inch

PCB Contact Row Spacing :

2.54 mm

Packaging :

Bulk

Terminal Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~135°C

Mating Contact Row Spacing :

0.05 inch

Insulation Resistance :

5000000000Ohm

PCB Contact Pattern :

STAGGERED

Backset Spacing :

0.150 (3.81mm)

Contact Finish :

Gold

Termination :

Solder

Mounting Option 2 :

JACKPOST

Flange Feature :

Mating Side, Female Screwlock

Contact Resistance :

8mOhm

Body Length or Diameter :

1.485 inch

Total Number of Contacts :

51

Current Rating (Amps) :

3A

Reference Standard :

UL

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Contact Form :

Machined

Length - Termination :

0.109 inch

Mounting Type :

Through Hole, Right Angle

Mating Contact Pitch :

0.05 inch

Contact Finish Thickness :

50.0μin 1.27μm

RoHS Status :

Non-RoHS Compliant

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Contact Material :

COPPER ALLOY

Additional Feature :

ENVIRONMENTAL CLASS

Plating Thickness :

50μin

Insertion Force-Max :

1.668 N

Factory Lead Time :

31 Weeks

Number of Rows :

3

Number Of PCB Rows :

5

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Number of Positions :

51

Series :

Dura-Con™

Feature :

Shielded
