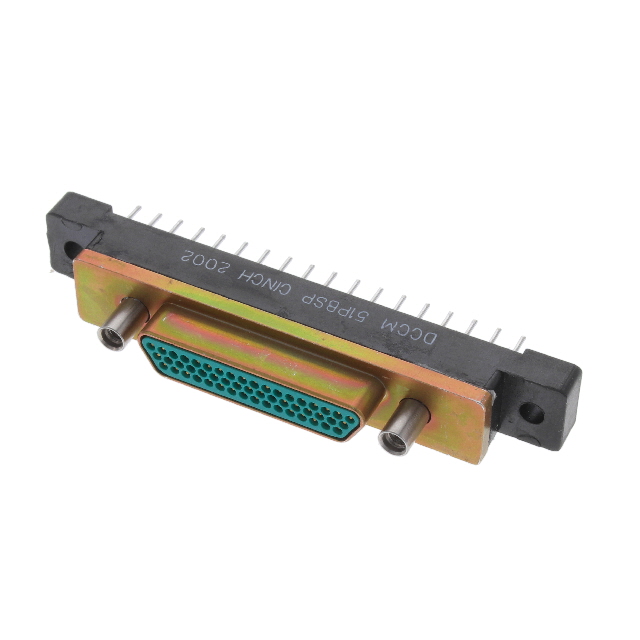

DCCM51PBSP
Or copy the link below:
- Mfr.Part #
- DCCM51PBSP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 51P VERT SLDR
- Stock
- 54
- In Stock ：
- 54
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Contact Resistance :
- 8mOhm
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Connector Type :
- Plug, Male Pins
- Factory Lead Time :
- 31 Weeks
- Number Of PCB Rows :
- 3
- Number of Positions :
- 51
- Contact Form :
- Machined
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Number of Rows :
- 3
- RoHS Status :
- Non-RoHS Compliant
- Shell Finish :
- Nickel
- Total Number of Contacts :
- 51
- Series :
- Dura-Con™
- PCB Contact Pattern :
- STAGGERED
- Contact Material :
- COPPER ALLOY
- Mounting Option 2 :
- JACKPOST
- Packaging :
- Bulk
- Insulation Resistance :
- 5000000000Ohm
- Body Length or Diameter :
- 2.27 inch
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Reliability :
- COMMERCIAL
- Insertion Force-Max :
- 1.668 N
- Additional Feature :
- ENVIRONMENTAL CLASS
- Feature :
- Shielded
- Current Rating (Amps) :
- 3A
- Plating Thickness :
- 50μin
- Contact Finish :
- Gold
- Contact Type :
- Signal
- Termination :
- Solder
- Mating Contact Pitch :
- 0.05 inch
- Length - Termination :
- 0.109 inch
- Flange Feature :
- Mating Side, Female Screwlock
- Terminal Pitch :
- 2.54mm
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Operating Temperature :
- -55°C~135°C
- Connector Style :
- D-Type, Micro-D
- PCB Contact Row Spacing :
- 2.54 mm
- Mating Contact Row Spacing :
- 0.05 inch
- Dielectric Withstanding Voltage :
- 600VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Datasheets
- DCCM51PBSP
DCCM51PBSP Documents
Dura-Con™ Series D-Type, Micro-D Plug, Male Pins 51-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
DCCM51PBSP Overview
The product is packaged in Plug, Male Pins.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Dura-Con™ Series, it can be found in this category.There are also other features such as ENVIRONMENTAL CLASS, to name only a few.With its Shielded feature, it is more powerful in many ways.The device is operating at -55°C~135°C Operating Temperature.
DCCM51PBSP Features
Dura-Con™ series
DCCM51PBSP Applications
There are a lot of Cinch Connectivity Solutions
DCCM51PBSP D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
